Introduction
In this section, you will observe how to very easily remove a damaged or malfunctioning keyboard. This breakdown of components can be done with ease: simply follow each step using the required tools. Tools needed are:
- Spudger
- Screwdriver
- Bit J00
-
-
Locate the keyboard and the led display cover.
-
Using the prying tool, go to the furthest right side of the keyboard cover and wedge upwards to lift the component out.
-

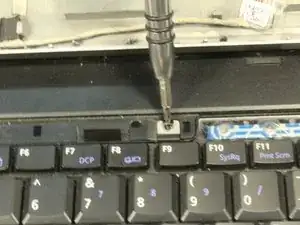

Locate the two M2.5X5mm screws and loosen using the J00 bit.
-
-
-

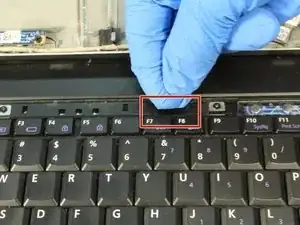

Locate the tab above the F7 and F8 keys.
-

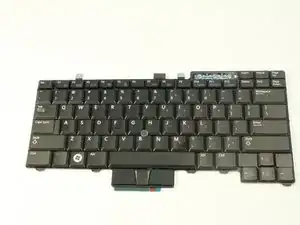

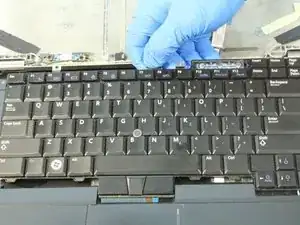

Pull up and toward the screen to remove the keyboard from the main component.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
