Introduction
The Dell Latitude E6500 can experience multiple signs of RAM failure, including crashing, a blue background screen, and frequent freezing. However, it is easy to fix with basic tooling. Before beginning the repair, a user must have a size 0 screwdriver and an eight-gigabyte RAM memory card.
NOTE: use an anti-static wrist strap when working to prevent circuitry damage.
Tools
-
-

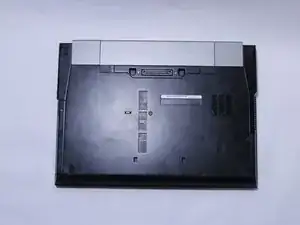

Use a size JIS #0 screwdriver to remove the center screw.
-

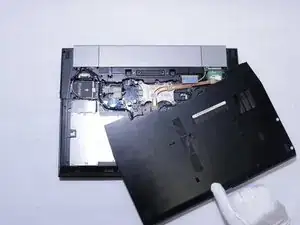

Slide the back cover towards you to remove.
-
-
-

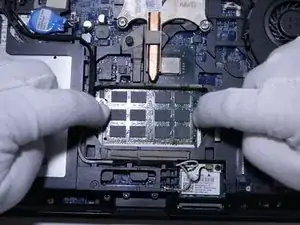

Push the first two hinges away from the RAM.
-

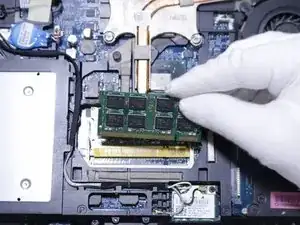

Remove first RAM card from the hinge.
-
Push the second two hinges away from the RAM to remove second RAM card.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
