Dell Latitude E6500 Hard Drive Replacement

Written By: Marvin Romero
  • Comments: 0
Dell Latitude E6500 Hard Drive Replacement

Difficulty

Moderate

Steps

5

Time Required

4 - 5 minutes

Introduction

  1. BdPBrjapSLKS2n25

    • Do not remove the hard drive while the computer is on or in sleep state. This might cause data loss.

    • Place the computer upside down on a clean, flat surface. Remove the bottom of the base assembly

    • Remove the bottom of the base assembly

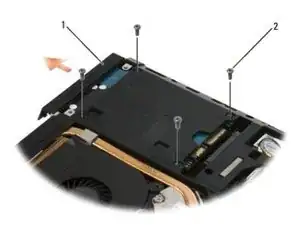

  2. vWhN3G1ufUUUrNTx

    • Remove the four M3 x 3-mm screws (marked with an "H") that secure the hard drive

    • Slide the hard drive out of the computer.

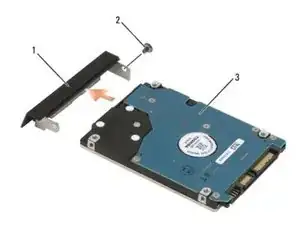

  4. HLMQSnGyCDBioIVM

    • Remove the M3 x 3mm screw from the bezel and take the bezel off the hard drive.

    • Attach the bezel to the hard drive using the M3 x 3mm screw.

    • Slide the hard drive into the bay until it is fully seated

Conclusion

To reassemble your device, follow these instructions in reverse order.
