Dell Latitude E6420 Screen Replacement

Written By: Madysen Eames
  • Comments: 2
Dell Latitude E6420 Screen Replacement

Difficulty

Moderate

Steps

7

Time Required

10 minutes

Introduction

Laptop screens can crack or stop displaying picture. This guide will show users how to replace the screen.

  1. kBmFbDSAYPHbppII
    kBmFbDSAYPHbppII
    kXNDGAolSDHSwySJ

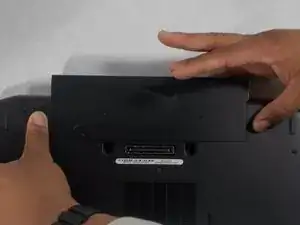

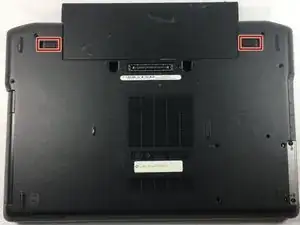

    • Push the tabs on the left and right of the battery out towards the edge of the case.

  2. RCsHVdWPLbDGNJ62

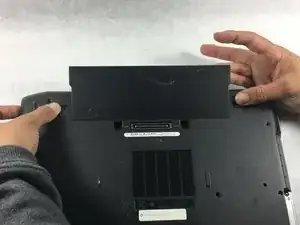

    • While still pushing in the tabs, using your pinky finger, lift the battery out of the laptop.

  3. J5npRCMmZdXLilGo
    J5npRCMmZdXLilGo
    fMJg5o3iM6ak5Zwr

    • Open the laptop and lay it flat on your work surface.

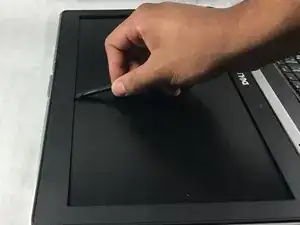

    • Using the spudger, lift the bezel up from around the laptop screen.

  4. NmR4SYsPIlbH1BFX
    NmR4SYsPIlbH1BFX
    usoqHTNkHqQGAUTN
    moEpOOvI3OwpKaal

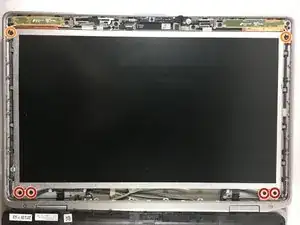

    • Using the screwdriver, remove four 5mm Phillips #0 screws from the bottom of the laptop screen.

    • Using the screwdriver, remove two 3mm Phillips #0 screws from the top of the laptop screen.

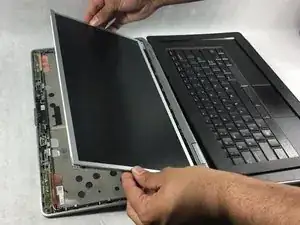

    • Lift the screen.

  5. oGMtRkcB2NWBDoCw

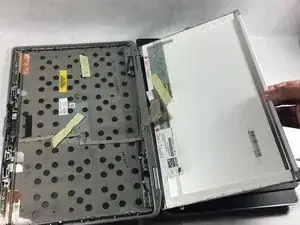

    • Lift the laptop screen and flip it over to lay it on top of the keyboard.

  6. GpJCg1ZbDLvSeEci
    GpJCg1ZbDLvSeEci
    NifENbMXGKZBLJKM

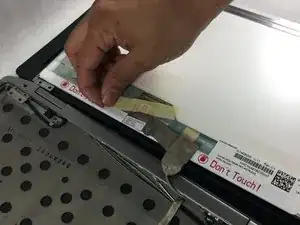

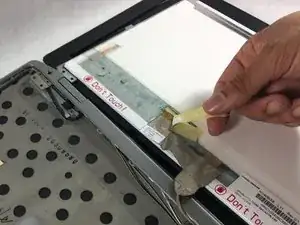

    • Remove the piece of tape from the back of the LCD cable.

  7. KBCJJxdt2VfQLLJR
    KBCJJxdt2VfQLLJR
    OXsDZZHNdH4cSsCM

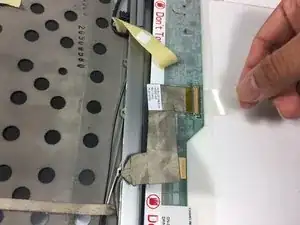

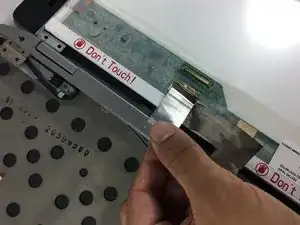

    • Lift the piece of tape attached to the LCD cable.

    • Once the tape has lifted, gently pull back to unplug the LCD cable.

    After that what else

    Derek Amartei Akrong -

Conclusion

To reassemble your device, follow these instructions in reverse order.
