Dell Latitude E6420 Fan Replacement

Written By: Madysen Eames
  • Comments: 4
Dell Latitude E6420 Fan Replacement

Difficulty

Easy

Steps

9

Time Required

20 minutes

Introduction

If the fan isn't working properly, the laptop can overheat. This guide will show users how to replace the fan.

  1. kBmFbDSAYPHbppII
    kBmFbDSAYPHbppII
    kXNDGAolSDHSwySJ

    • Push the tabs on the left and right of the battery out towards the edge of the case.

  2. RCsHVdWPLbDGNJ62

    • While still pushing in the tabs, using your pinky finger, lift the battery out of the laptop.

  3. ALrYRveYmIM1QfDj
    ALrYRveYmIM1QfDj
    1Rgr3yTKxsHsxKbA

    • Push the button in on the CD/DVD drive to eject the drive.

    It is unnecessary to remove the CD/DVD drive to remove the keyboard.

    johnewert -

  4. AGsagT4uS2cQ1OVM
    AGsagT4uS2cQ1OVM
    thM565cKyQkjKwBB

    • Slide the drive out of the laptop.

    • When removing the drive, keep it flat to prevent damage to anything inside the laptop.

  5. 1F1TdkhZQPvYqkJS
    1F1TdkhZQPvYqkJS
    XfjMse6UumMZSm6D

    • Using the screwdriver, remove seven 4mm Phillips #1 screws from the bottom of the laptop.

    • Using the screwdriver, remove two 9mm Phillips #00 screws from the bottom of the laptop.

    It is unnecessary to remove the 4mm Philips #1 screws to remove the keyboard

    johnewert -

  6. bNAVsYbrI1AkT6Pb
    bNAVsYbrI1AkT6Pb
    yeYw24rxUEnBUoHL

    • Gently lift the back plate off of the laptop making sure all of the tabs on the inside perimeter of the back plate are unhooked before lifting.

    • Be careful when removing the backplate. Lifting the backplate while the tabs are still hooked in will result in broken tabs.

    Additionally, it is unnecessary to remove the bottom cover to remove the keyboard.

    johnewert -

  7. 2iLIAJOsQyDFxfob
    2iLIAJOsQyDFxfob
    FYYALRuoTCbdnS1H

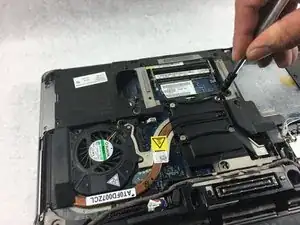

    • Using the screwdriver, remove four 10mm Phillips #0 spring screws from the fan assembly.

  8. BrnBVIM3aYjJweXX
    BrnBVIM3aYjJweXX
    jpuWWFjEuAfMf1iI

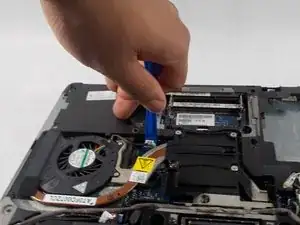

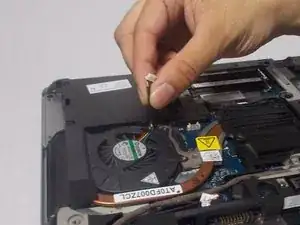

    • Use the plastic opening tool to unclip the connector.

  9. 56XFTKDmXbPjG42O

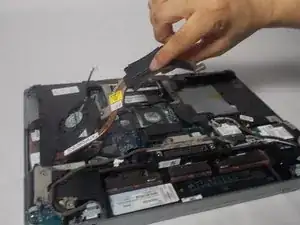

    • Lift the fan out of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
