Dell Latitude E6320 Memory (RAM) Replacement

Written By: Hezekiah Brown
  • Comments: 0
Dell Latitude E6320 Memory (RAM) Replacement

Difficulty

Easy

Steps

5

Time Required

1 - 3 minutes

Introduction

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery, secure SD card, and base cover from the computer.

  2. avsgyOtLKhhFqkys

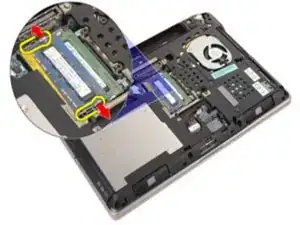

    • Pry the retention clips away from the memory module until it pops up.

  3. 3YGfjwTgKyxMxBNL

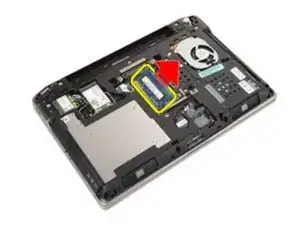

    • Remove the memory module from the computer.

    • Insert the memory module into the memory slot.

    • Press the clips to secure the memory module to the system board.

    • Install the base cover, secure SD card, and battery to the computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
