Dell Latitude E5500 Bluetooth Card Replacement

Written By: Richard Harrison
  • Comments: 0
Dell Latitude E5500 Bluetooth Card Replacement

Difficulty

Easy

Steps

6

Time Required

10 minutes

Introduction

If the user would like to replace a faulty Bluetooth card, or one that is not powerful enough, this guide will give step by step information on how to achieve this.

  1. Aa2AkOqIRV3iBSMn

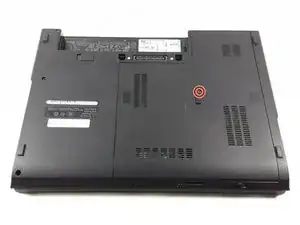

    • Unscrew the single 3.5mm Phillips #1 screw that holds on the bottom plate of the device.

  2. 1sHi4sARecoPDSKJ
    1sHi4sARecoPDSKJ
    PM14jFgZ55blcfe1

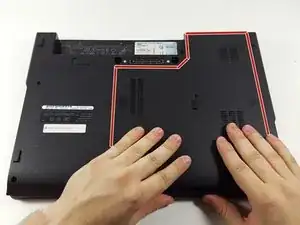

    • Place your hands on the plate and pull it toward yourself.

    • The plate will pop out of place and may then be removed.

  3. SsHbH5DwRZmtGyX2
    SsHbH5DwRZmtGyX2
    RV4u3QiVpBmSLlHZ

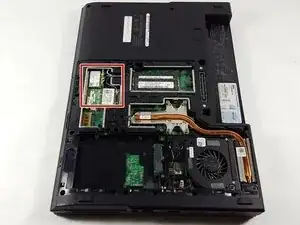

    • The Bluetooth card is located near the front of the device, and is the expansion card with one antenna attached to it.

  4. mFMcRkrCLe6BsiZh

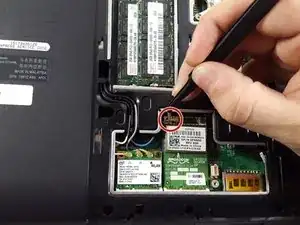

    • Remove the wire connecting the card to the laptop with a pair of tweezers.

  5. Yp52CV5kcPj13RvR

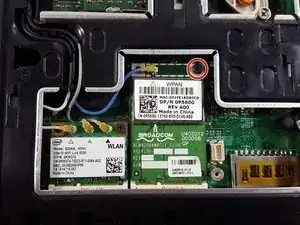

    • Unscrew the 4mm Phillips #1 screw that secure the card in place.

  6. YhUUqwQJapKRrQ5r
    YhUUqwQJapKRrQ5r
    ePAPv3UpSeqDYcrO

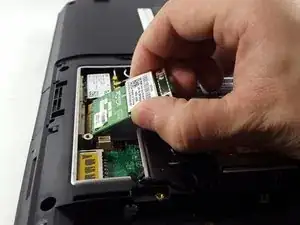

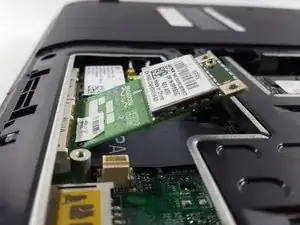

    • After completing steps 4 & 5, the card will lift up at an angle as shown.

    • Once the card has popped out of place, it can be gently removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
