Introduction
When a problem exists with the display, wifi, camera, or even the laptop lid itself, it is often easier to just replace the whole screen assembly. This guide is a quick simple way to accomplish this task.
-
-

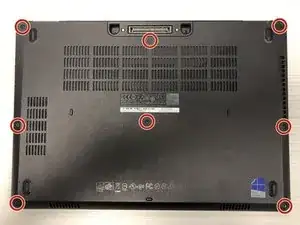

Loosen the 8 Philips screws on the bottom of the laptop. They will not come all the way out but loosen till they spin freely.
-

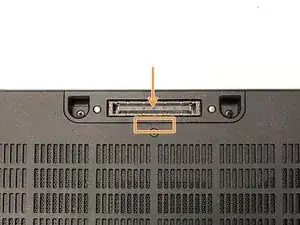

Use a splurger to slowly pry the bottom cover off the laptop. Pull the bottom off in the direction of the arrow.
-
Important Be carefull to not break the snaps as they are delicate.
-
-
-
Important Disconnect the battery before any work is done. Failure to do so could result in electric shock and cause harm to you and the laptop.
-

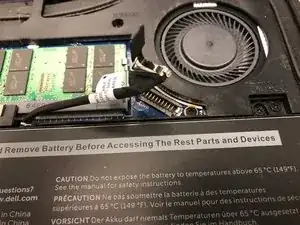

Carefully use the plastic tab to remove the battery cable from the motherboard.
-
-
-

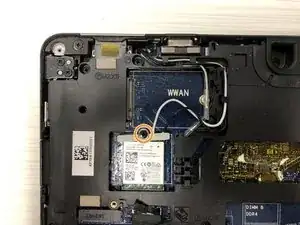

Unscrew the screw holding the card in place.
-
Remove the metal guard holding the connections in place.
-

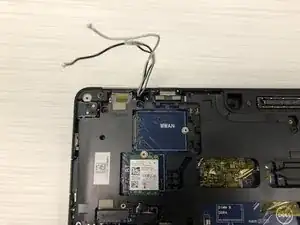

Use the splurger to gently lift the wires from the card.
-
-
-

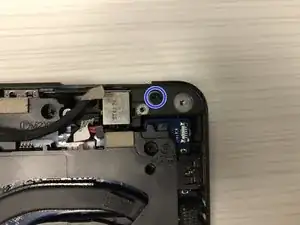

Remove screw holding the metal plate in place.
-
Remove metal plate
-

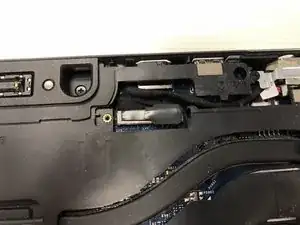

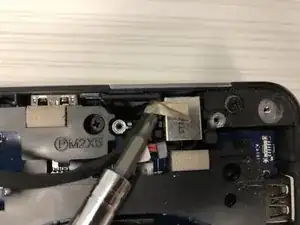

Carefully pull on the tab to disconnect the display cable from the motherboard.
-
-
-

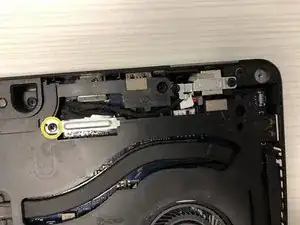

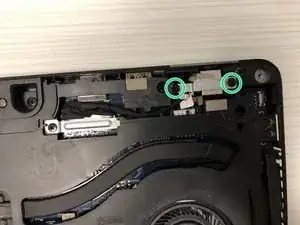

Remove both screws holding the plate in place.
-
Remove plate
-
Remove tape holding the display cable to the laptop.
-
Pull the cable free
-
-
-

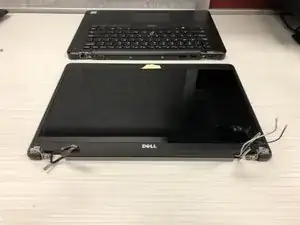

Carefully remove the display from its slots.
-

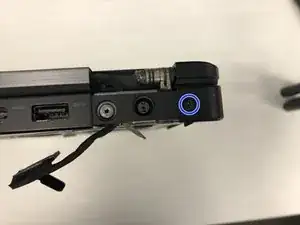

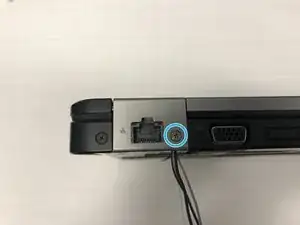

Be mindful to feed the WiFi and Display cables through the holes.
-

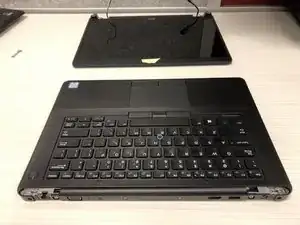

To reassemble your device, follow these instructions in reverse order.
