Dell Latitude E5470 LCD Panel Replacement (Display, not display assembly)

Written By: Harvey
  • Comments: 5
Dell Latitude E5470 LCD Panel Replacement (Display, not display assembly)

Difficulty

Easy

Steps

5

Time Required

15 minutes

Introduction

How to replace the LCD panel for Dell Latitude E5470 Laptop

  1. DNY3qrGgMxpG5qiV
    DNY3qrGgMxpG5qiV
    AxVXCpSARpmZnuIn

    • Loosen the 8 screws on the bottom cover. The screws will remain in the casing, they do not come out all the way.

    • Insert the pick or spudger between the upper and lower casing to release the plastic clips.

    • Attention needed: The clips are easily broken.

  2. gBnjpIqri6JDuJJt

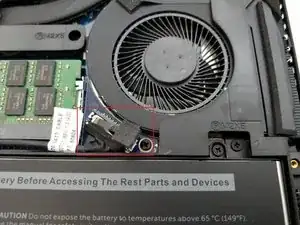

    • To disconnect the battery, pull gently upwards on the tab connector.

  3. rNN1jot5OQcJU4Dp

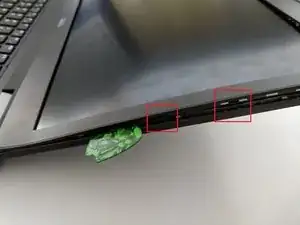

    • Using a pick or spudger, gently insert between the LCD back-cover and bezel to release the clips.

    • The bezel is also glued to the LCD panel.

    • Remove slowly to avoid tearing or damaging any components underneath.

  4. Ayy4DMExuxZgDQ5Z

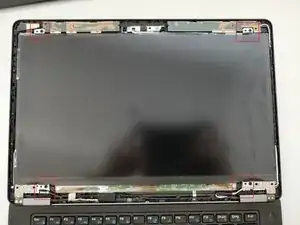

    • Remove the 4 Philips screws securing the panel.

  5. QhHOtTXsWJbUiSEE
    QhHOtTXsWJbUiSEE
    MQ3fhyVFAfDXfbXg
    xqAQiSCDnCPYmOCY

    • Remove the LCD paneland lay it flat on the keyboard.

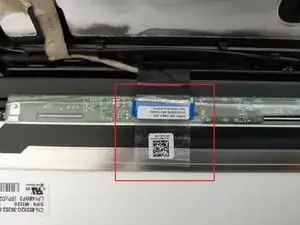

    • You will be able to see the connector on the back of the LCD panel secured with some adhesive tape and a metal connector.

    • Udsing the tweezers, slowly lift the tape away to reveal the blue sticky protector. Removing the blue pad to see the metal connector underneath.

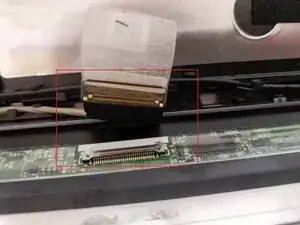

    • Using a spudger, lift the front of the connector up (highlighted by the white arrow).

    • Pull the cable back to release the cable from the connector.

    • To reassemble, follow the steps in reverse.

Conclusion

To reassemble your device, follow these instructions in reverse order.
