Dell Latitude E5450-5450 Wifi Card Replacement

Written By: Jeannie Crowley

Comments: 1

Dell Latitude E5450-5450 Wifi Card Replacement

Difficulty

Easy

Steps

Time Required

5 - 10 minutes

Introduction

Tools

Parts

Wifi Card

Step 1

Remove the 6 screws using a Philips #1 (PH1) screwdriver.

Step 2

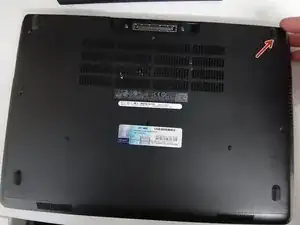

Using your fingers or a pry tool, gently lift the cover from the device. If the device has been opened before, it should open easily from the top corner using your finger.
If it is a tight fit, a spudger can be used to gently pry open the cover. Place the spudger at the top corner to pry open.

Step 3

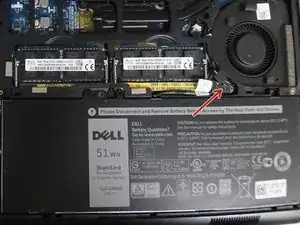

Disconnect the battery before proceeding to reduce the risk of shock or damage.
Gently pull the tab attached to the battery to disconnect it.

Step 4

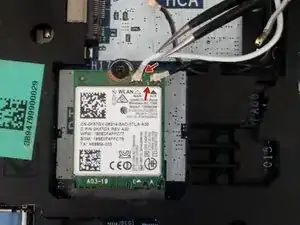

If the wires are not clearly labeled as 1 and 2, take note of how the wires are connected to know which is 1 and 2. The WiFi card should have a tiny 1 and 2 on the card itself for guidance.

Step 5

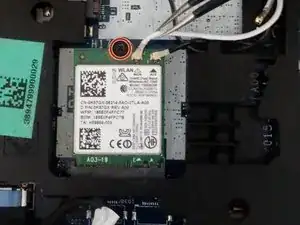

Use a Philips #1 (PH1) screwdriver to remove the screw holding the WiFi card in place.

Step 6

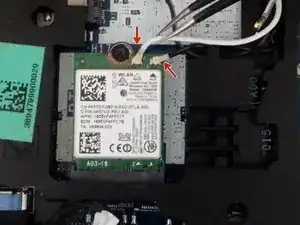

Gently disconnect the antennas and slide the WiFi card from the slot

Step 7

Slide new WiFi card into the slot and reassemble the device by completing steps 1-6 in reverse order.
You might need to use tweezers to hold the cables in place as you connect the antenna to the WiFi card. A spudger can be used to gently press the connectors into place.

Delete your paired bluetooth devices before the old card removal, to avoid conflicts after installing new card (different card= different MAC address)

When installing different card model

Before any removal: download and place new drivers on the HDD/SSD of your device.

After removal: remove the old card from the device manager (and drivers). Use “view-show hidden devices”

andrzej.wyrebski - 30/01/21
