Dell Latitude E5410 Hard Drive Replacement

Written By: Aaron Thomas
  • Comments: 2
Dell Latitude E5410 Hard Drive Replacement

Difficulty

Moderate

Steps

7

Time Required

10 minutes

Introduction

  1. cBrqLo3srWcPnmj1

    • Have your Dell Latitude E5410 unit ready face down.

  2. 1PTTJOBfGuhvQCFX

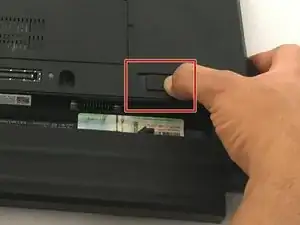

    • Use your thumb to move the tab to the right that releases the battery, while using your other hand to slide the battery out.

    • The battery will come out straight toward you.

  3. KkkO2pPelHKoFipB

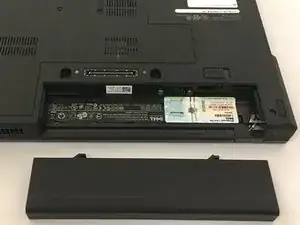

    • Have your replacement battery ready to slide in.

  4. K1vRT1qeTaqD3EqS
    K1vRT1qeTaqD3EqS
    H1v1aHsNhKEj4u3r

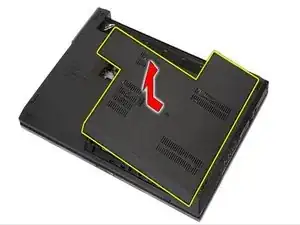

    • After removing the battery., loosen the screw(s) that secures the access panel to the computer, then that secures the access panel to the computer.

  5. ToZeeHSxjG5PmJDK

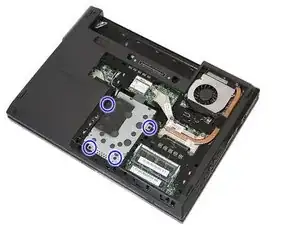

    • Locate and move the screws securing the hard drive to the computer.

  6. IKflSQteyItHKByK

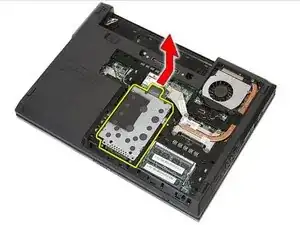

    • Slide the hard drive towards the center of the computer and remove.

  7. HZcPjTUS6eB4BMIv
    HZcPjTUS6eB4BMIv
    njCtqJU1UCSfWtKT

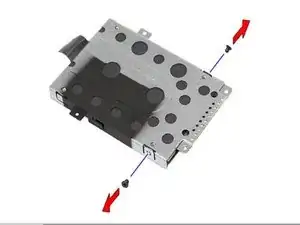

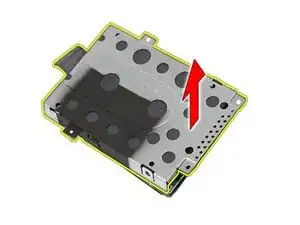

    • Remove the screws securing the hard drive caddy to the hard drive. Then, lift up the hard drive caddy at an angle from the hard drive and remove.

Conclusion

With your replacement hard drive , reassemble your device by performing these instructions in reverse order.
