Dell Latitude 9510 Speakers Replacement

Written By: David Cauley
  • Comments: 0
Dell Latitude 9510 Speakers Replacement

Difficulty

Moderate

Steps

4

Time Required

10 - 20 minutes

Introduction

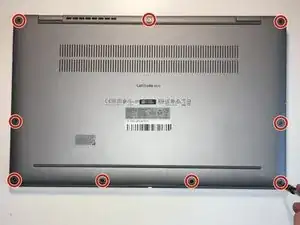

  1. xGc61jZUDCejZYDS

    • Flip the device so that the base plate is facing you.

    • Use a Phillips #0 screwdriver to remove the nine 5.5 mm screws securing the base plate.

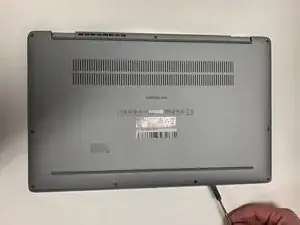

  2. I2AAQwqsG2YJYBCV

    • Wedge a spudger between the base plate and the chassis, then gently pry around the entire perimeter to release the base plate.

    • Remove the base plate.

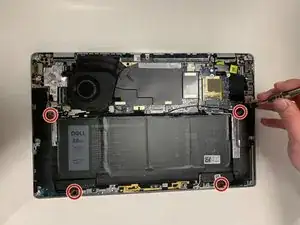

  3. gnKsZZ1kIfpbqBtG

    • Use a Phillips #0 screwdriver to remove the four 2 mm screws from the speakers.

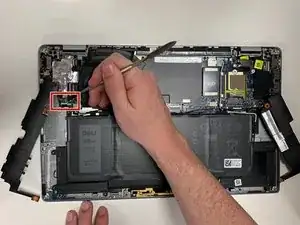

  4. 1KKgXTAIBMXOxESW

    • Use a spudger to gently lever the speaker connector out of its port.

    • Lift the speakers up and out.

Conclusion

To reassemble your device, follow these instructions in reverse order.
