Dell Latitude 7490 RAM Replacement

Written By: Spencer Day
  • Comments: 0
Dell Latitude 7490 RAM Replacement

Difficulty

Moderate

Steps

9

Time Required

15 - 25 minutes

Introduction

Use this guide to replace or upgrade the RAM in your Dell Latitude 7490 laptop.

This laptop has two SO-DIMM slots that support DDR4 memory modules.

  1. rXn3Ph1eZtNG6JV1
    rXn3Ph1eZtNG6JV1
    HFqT4WkFUlepG16O

    • Allow your laptop's battery to drain below 25% before starting this repair—a charged battery may catch fire if damaged.

    • Unplug all cables and fully shut down your laptop.

  2. NcTiMBuYfW2cSSrR

    • Flip your laptop over so the rubber feet strips are facing up.

  3. gj3hyTxJVLb3n3ux
    gj3hyTxJVLb3n3ux
    XwSng1PvSHoWwP5p

    • Use a Phillips screwdriver to fully loosen the eight captive screws securing the back cover.

  4. BsC3oIpopaQDQcON
    BsC3oIpopaQDQcON
    pANaxGFhRHT1dFcj
    1HavHh64px6L2sg3

    • Plastic clips secure the back cover to the frame. You'll hear and feel them release as you work.

    • Insert the long side of an opening pick between the top right corner of the back cover and frame.

    • Pry the back cover up to release the clips securing the top right corner.

  5. oxqS61jibxnAdhth
    oxqS61jibxnAdhth
    tUmEATLiqUUNtYYW
    Zq51LW5mCBtFKmTF

    • Slide the opening pick down the right edge and around the bottom right corner to release the clips.

  6. sZRF3JmgpPdwarJA
    sZRF3JmgpPdwarJA
    spUpebP2lSEFYbyq
    ijAcmIoxgTvABmoH

    • Slide the opening pick along the front edge and up to the top left corner to release the remaining clips securing the back cover.

  7. 34H5a1DYHpRGT1Oj
    34H5a1DYHpRGT1Oj
    u214Yu31dPTxLsJt
    lwHMcKKeFflBgNJo

    • Remove the back cover.

    • During reassembly, lay the back cover on the frame and press down firmly around the perimeter to engage all the clips.

  8. nSR4PYrMP1ojYFJQ
    nSR4PYrMP1ojYFJQ
    EgAseLpdRf6kVb5p

    • Grip the plastic tab on the battery connector and pull straight up to disconnect it.

    • During reassembly, align this connector over its socket and press down until it clicks into place. If it doesn't connect, re‑align it and try again.

  9. PWUMT6yBqTJFuWCq
    PWUMT6yBqTJFuWCq
    NB2eULvonxIHcruM
    FeZiBc3WjQBDpogb

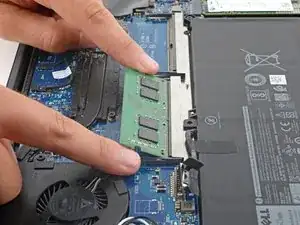

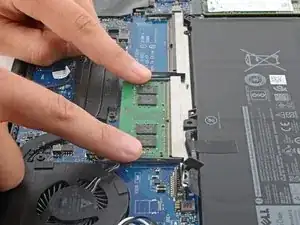

    • Two metal arms secure the left and right edges of each RAM module.

    • Simultaneously push the arms outward to disengage them.

    • The module should pop up at a slight angle.

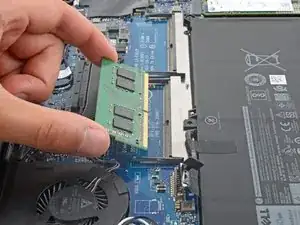

    • Remove the RAM module.

    • Repeat the process for the second RAM module.

    • To install a RAM module, insert it into its socket at a slight downward angle and push down firmly until both metal arms lock the module in place.

Conclusion

To reassemble your device, follow these instructions in reverse order.

Take your e-waste to an R2 or e-Stewards certified recycler.

Repair didn’t go as planned? Try some basic troubleshooting, or ask our Answers community for help.
