Dell Latitude 5521 Wireless Card Replacement

Written By: Michael Engle
  • Comments: 0
Dell Latitude 5521 Wireless Card Replacement

Difficulty

Moderate

Steps

2

Time Required

30 minutes - 1 hour

Introduction

  1. TTEE2NSohwsAmGIE
    TTEE2NSohwsAmGIE
    XyavMUZUCQeZUnBX
    gLgLW2yLsyNRel42

    • Remove the 9 phillips #0 screws from the bottom of the case.

    • Carefully pry open the base cover with your spudger. Work your way around the case slowly, being careful not to damage any of the components inside.

    • Once removed you will have access to the contents of your case.

  2. XMmUVmyPyjHIdKtE
    XMmUVmyPyjHIdKtE
    laks1cIGXHC6TjQa
    UX1NDfNEH6XKhPLO

    • Locate the wireless card.

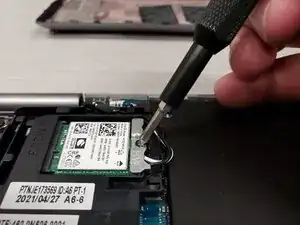

    • Remove the one screw holding the card in using your PH0 bit.

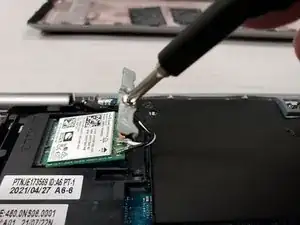

    • Remove the bracket holding the wireless card in.

    • Remember the orientation of the bracket for reinstallation.

    • Remove the black and white wires from the wireless card.

    • For reinstallation it helps to push on the top of the connector to get it seated. Top being the end opposite where the wire comes into the connector.

Conclusion

To reassemble your device, follow these instructions in reverse order.
