Introduction
-
-
Remove the 9 phillips #0 screws from the bottom of the case.
-
Carefully pry open the base cover with your spudger. Work your way around the case slowly, being careful not to damage any of the components inside.
-
Once removed you will have access to the contents of your case.
-
-
-

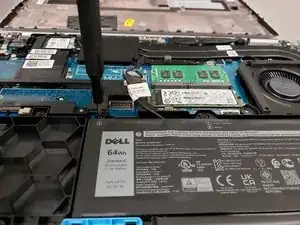

Locate battery in case.
-
Locate three screws that will need to be removed.
-

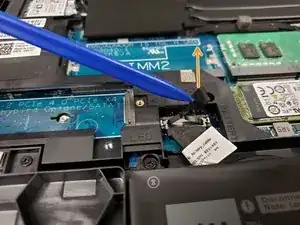

Locate ribbon attached to battery cable a the top left of the battery and pull straight up on the ribbon.
-
Remove all three screws holding the battery on the main board.
-
Conclusion
To reassemble your device, follow these instructions in reverse order.
