Dell Latitude 3500 CMOS Battery Replacement

Written By: Jake
  • Comments: 0
Dell Latitude 3500 CMOS Battery Replacement

Difficulty

Moderate

Steps

6

Time Required

No estimate

Introduction

Today we're looking at how to replace a CMOS battery in a Dell Latitude 3500.

  1. Q3BUtAU3uFWvDMJN

    • 10 screws hold the bottom cover in place -- these stay in the bottom cover.

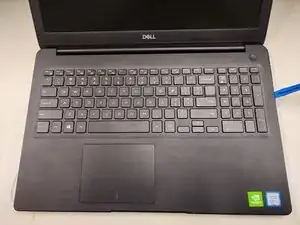

  2. 3VW5KSiWZwWd3xYm

    • Using a spudger will make quick work of this step.

  3. JTeOOSsYVM6ieuSO

    • Disconnect the battery cable from the motherboard.

    • Remove the 4 screws holding it in place

    • Battery can now be removed from device.

  4. HWXyZkjNGXPxQPXt

    • Small latch holding it in place

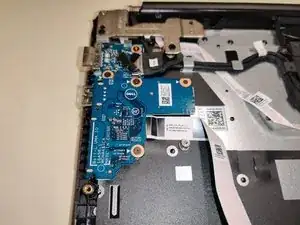

  5. Na2sQoWvnDfi6nrR

    • 2 screws total

    • Board can now be removed

  6. fKvwp2wTxmDnSA5f

    • Use a plastic prying tool to remove the CMOS battery

Conclusion

To reassemble your device, follow these instructions in reverse order.
