Dell Latitude 3380 Wi-Fi Card Replacement

Written By: Kristen Gismondi
  • Comments: 0
Dell Latitude 3380 Wi-Fi Card Replacement

Difficulty

Moderate

Steps

3

Time Required

No estimate

Introduction

  1. FpCyVXYQ1DEZCVco
    FpCyVXYQ1DEZCVco
    eAFBPJ4jWBo3aSBG

    • Turn the laptop over so that the back is facing up.

    • Remove the nine 3 mm screws with a Phillips #0 screwdriver.

  2. 2lo1wHIWVdLpkwWZ
    2lo1wHIWVdLpkwWZ
    3UWwHbdWPTnjBCk5

    • Use an opening tool to pry the back cover away from the laptop.

  3. TvjyOM1FZThvQSop
    TvjyOM1FZThvQSop
    FcAf46KxKbcRpEbn

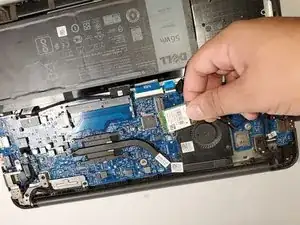

    • Remove the single 3 mm screw holding down the Wi-Fi card using a Phillips #0 screwdriver.

    • Pull the Wi-Fi card out of its socket to remove it from the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
