Dell Inspiron M5010 RAM Replacement

Written By: April Poucher
  • Comments: 0
Dell Inspiron M5010 RAM Replacement

Difficulty

Easy

Steps

5

Time Required

3 - 5 minutes

Introduction

  1. 5yFckkuiru6imhZR
    5yFckkuiru6imhZR
    qHIRNEtgGBhkiYoh

    • Make sure laptop is powered off before removing the battery.

    • Slide both arrow tabs towards the outer edge of the computer to release the battery.

    • Battery is not shown.

  2. VskvBDJcfceIHcQl
    VskvBDJcfceIHcQl
    LUxMH4iIsa6AI2Ol

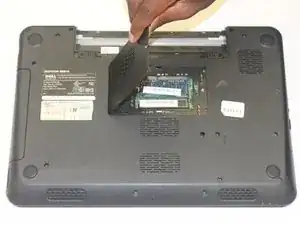

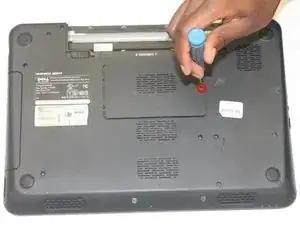

    • Using the Phillips #000 screwdriver, loosen the screw holding in the back cover.

    • Then, lift up the back cover to remove it.

  3. yEdnGXrAADgL3WiE
    yEdnGXrAADgL3WiE
    5ttARZjpflbJW4XK
    SLJbNBVnNYkdQJCF

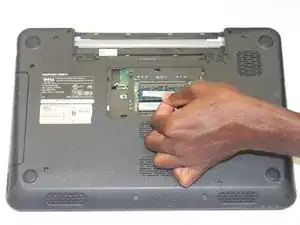

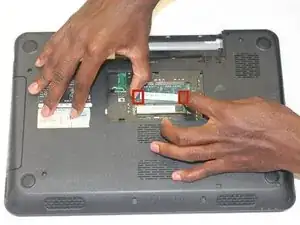

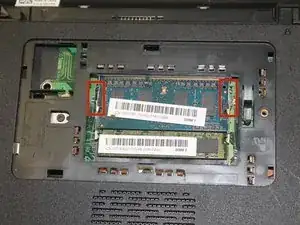

    • Snap open the top memory clips and remove the memory drive they hold in.

  4. NOSZOQ4BKNbmcNUL
    NOSZOQ4BKNbmcNUL
    hy4qU43QovTrLBY5
    KITmQ2Nq1AyXCP5y

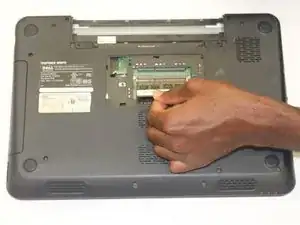

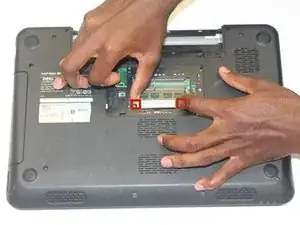

    • Snap open the bottom memory clips and remove the memory drive they hold in.

  5. qBanU3qXWIEqY5Xs

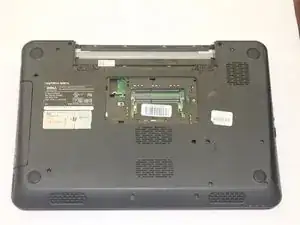

    • The laptop computer should look like this once both memory cards are removed.

Conclusion

To reassemble your device, follow these instructions in reverse order.
