Dell Inspiron M5010 CC/DVD Drive Replacement

Written By: April Poucher
  • Comments: 0
Dell Inspiron M5010 CC/DVD Drive Replacement

Difficulty

Easy

Steps

4

Time Required

5 minutes

Introduction

  1. 5yFckkuiru6imhZR
    5yFckkuiru6imhZR
    qHIRNEtgGBhkiYoh

    • Make sure laptop is powered off before removing the battery.

    • Slide both arrow tabs towards the outer edge of the computer to release the battery.

    • Battery is not shown.

  2. aAeQIZpIySelZkYi
    aAeQIZpIySelZkYi
    yZhgFdiTX1djYo1X

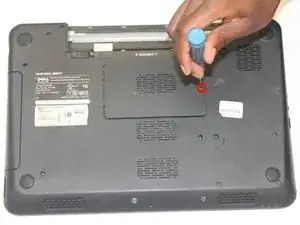

    • Using the Phillips #000 screwdriver, remove the 6 mm Phillips #000 screw holding in the back cover.

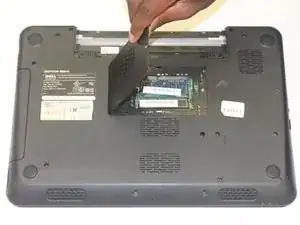

    • Lift the back cover away from the computer and remove it.

  3. BptPe6AFlEYXxdBS
    BptPe6AFlEYXxdBS
    wJ6x3i6uMp5qoZZo

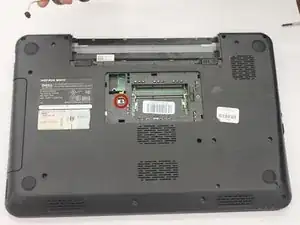

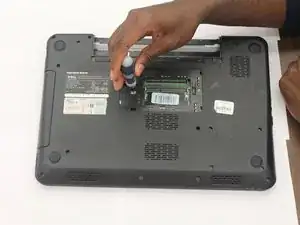

    • Remove the 6 mm Phillips #000 screw using the Phillips #000 Screwdriver.

  4. 5nLl3UVMGG2nQYgf

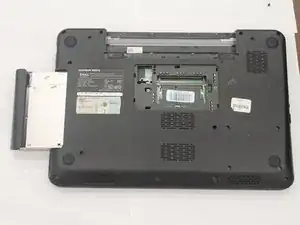

    • Pull the CC/DVD drive from computer.

Conclusion

To reassemble your device, follow these instructions in reverse order.
