Dell Inspiron 9300 RAM Replacement

Written By: Randy McMillan
  • Comments: 0
Dell Inspiron 9300 RAM Replacement

Difficulty

Easy

Steps

4

Time Required

10 minutes

Introduction

Upgrade or replace the ram in your Dell Inspiron 9300

  1. QDEid16SJQeBCahv
    QDEid16SJQeBCahv
    YhGCt1LX4hKEwZ6v

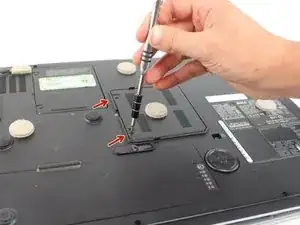

    • Flip the computer over and place it on a clean level surface.

    • Loosen the screws using a #0 Phillips screw driver.

    • It is strongly recommended that the Anti-Static Wrist Strap is used to avoid damage to internal components.

    • The screws are secured by retainer clips in the plastic panel and are not fully removable.

  2. NxqkQVbLLMPxfCd2

    • Remove the plastic panel.

  3. 3roTkh2aHHaCCMcc
    3roTkh2aHHaCCMcc
    lnT1YnOeXivGmONo

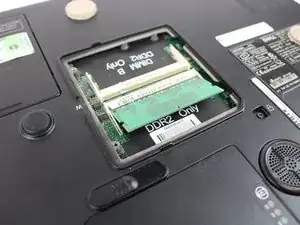

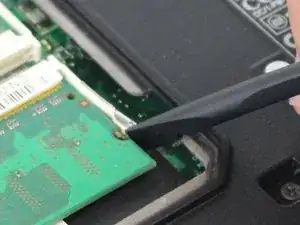

    • Carefully pry away the retaining clips on either side of the ram modules using a spudger tool, until the card pops away from the motherboard.

    • Repeat for the second ram module if necessary.

  4. WlOZ6RhRai6m5LpV

    • Carefully pull the ram modules out of it's slot, away from the motherboard.

Conclusion

To reassemble your device, follow these instructions in reverse order.
