Dell Inspiron 8600 CD-Rom Drive Replacement

Written By: Brian Murphy
  • Comments: 1
Dell Inspiron 8600 CD-Rom Drive Replacement

Difficulty

Easy

Steps

3

Time Required

5 - 10 minutes

Introduction

This guide will show you how to remove the CD-Rom Drive and replace it with a properly functioning one.

  1. H5bBYX1QTDXQvO15

    • Remove the battery from the bottom left of the laptop as shown.

    • Remove the battery before operating on the computer to avoid electrocution.

  2. 2VejRfdNuOolM3Z1

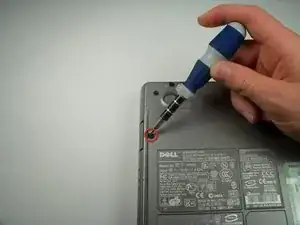

    • Locate and remove the screw that secures the CD-Rom Drive.

  3. 5JwOAbTFnhl6Oev2
    5JwOAbTFnhl6Oev2
    KdFhjYKUsI5SDZIA
    G31RwrGRl53Muas3

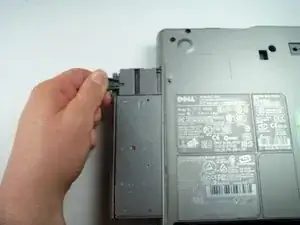

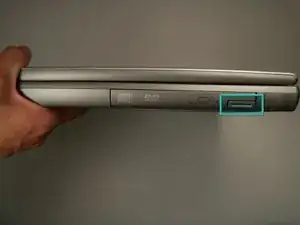

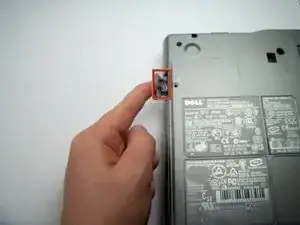

    • Push the button on the lower right hand side of the CD-Rom drive component.

    • The button should pop out.

    • Then pull out the CD-Rom Drive from there.

Conclusion

To reassemble your device, follow these instructions in reverse order.
