Dell Inspiron 6000 Hard Drive Replacement

Written By: Kenneth Odum
  • Comments: 0
Dell Inspiron 6000 Hard Drive Replacement

Difficulty

Easy

Steps

4

Time Required

2 minutes

Introduction

The hard drive removal process is simple and straight forward. Barely any disassembly is required.

  1. hTNbTd3t2xG2LNyP

    • To prevent injury, make sure the laptop is unplugged before removing the battery.

    • Flip the laptop over, bottom-side up.

  2. P1UqhtoewIT1DbbO

    • Push the switch next to the battery.

    • At the same time, lift the battery away from the laptop.

  3. iBAIYHKhNcgDKcsO

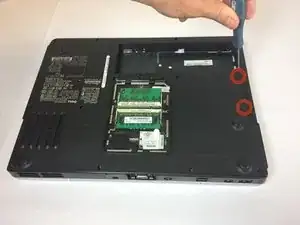

    • Remove the two 2.5mm Phillips #00 screws

  4. JGTLfYchfGL5MJOC

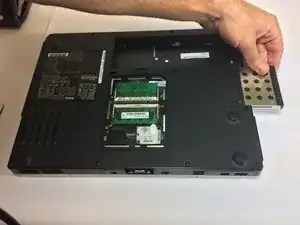

    • Using your hand, pull hard drive out of the laptop.

Conclusion

To reassemble your device, follow these instructions in reverse order.
