Dell Inspiron 15R N5110 Battery Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 15R N5110 Battery Replacement

Difficulty

Very easy

Steps

3

Time Required

15 - 40 seconds

Introduction

In this guide, we will be showing you how to remove and replace the Battery.

  1. vOsggnZv42DZlVQB

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before You Begin".

    • Close the display and turn the computer over.

    • Slide the battery latches on each end of the battery bay to the unlock position. You will hear a click when the battery is unlocked.

  2. aEkHRM6NgmmUJRvv

    • Lift and remove the battery off the computer base to disconnect it from the computer.

  3. VqFiRdRWRRSdUSDr

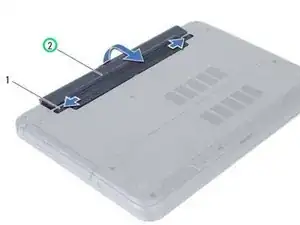

    • Align the tabs on the NEW battery with the slots on the battery bay and snap the battery into place.
