Dell Inspiron 15-5567 Hard Drive Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 15-5567 Hard Drive Replacement

Difficulty

Easy

Steps

12

Time Required

4 - 10 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. YSAsEfqwFsHAqEDY
    YSAsEfqwFsHAqEDY
    UYNYfhMedyXmfqqt
    AQPeJAIdFZWDLr1g

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.

    • Lift the latch and using the pull tab, disconnect the hard-drive cable from the system board.

  2. QsYwCnLK2QAMPAs6

    • Remove the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

  3. bgeuLpTifhqAmWuD

    • Lift the hard-drive assembly along with its cable off the palm rest and keyboard assembly.

  4. KuQRIaMFDDCQO66u

    • Disconnect the interposer from the hard-drive assembly.

  5. 1uD1hJp5viciVaiV

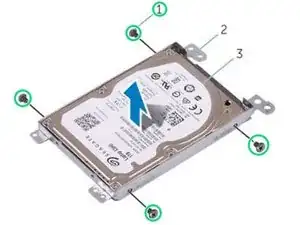

    • Remove the screws that secure the hard-drive bracket to the hard drive.

  6. 66B2LRxTOMxFeEYM
    66B2LRxTOMxFeEYM
    EKEjVYVQGKI1NEmB

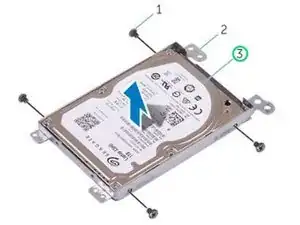

    • Lift the hard drive off the hard-drive bracket.

  7. nrmMDUnYDwkLDY1n

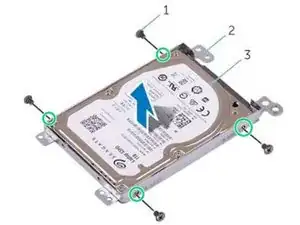

    • Align the screw holes on the hard-drive bracket with the screw holes on the hard drive.

  8. OSlGMHXSGlxFKF4H

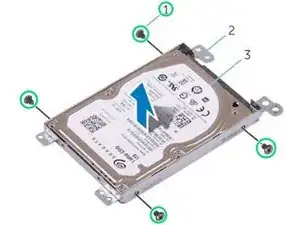

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  9. 1XqF5hbECGpExY5S

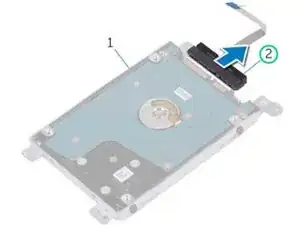

    • Connect the interposer to the hard-drive assembly.

  10. O6niZMyHNxUVsY4d

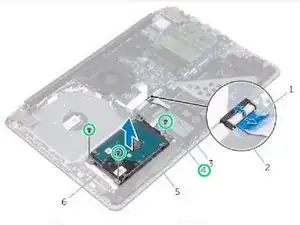

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm rest and keyboard assembly.

  11. ThkHSG3GLNTYqvCp

    • Replace the screws that secure the hard-drive assembly to the palm rest and keyboard assembly.

  12. KTDa2YdLAJuVHqb2

    • Connect the hard-drive cable to the system board and close the latch to secure the cable.
