Dell Inspiron 15 Gaming 7577 Battery Replacement

Written By: Terrence15

Comments: 4

Dell Inspiron 15 Gaming 7577 Battery Replacement

Difficulty

Easy

Steps

5

Time Required

3 - 6 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Battery.

Tools

Phillips #0 Screwdriver

Step 1

evPjtfT53bS4KmTI

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.
Remove the three screws (M2.5x6) that secure the battery to the computer base.

Step 2

eSDHkcVNZWiltnYl

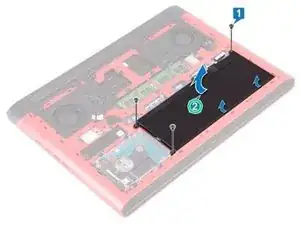

Lift the battery at an angle off the computer base.

Step 3

Turn the computer over, open the display, and press and hold the power button for five seconds to ground the system board.

Step 4

HGFLlS15ACC1KPuY

Slide the NEW battery in the slot on the computer base and align the screw holes on the battery with the screw holes on the computer base.

Step 5

ERucmXZ2hMOfvXSt

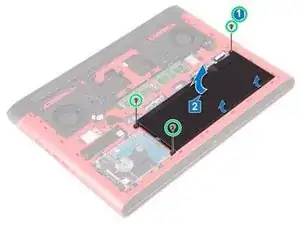

Replace the three screws (M2.5x6) that secure the battery to the computer base.

Author

Terrence15

Member since: 18/12/17

79675 Reputation

4 comments

Could you provide a link to order battery?

avxkim - 11/08/18

Where can I get the battery replacement?

Jose - 03/11/18

Link to battery?

Timoleon Charilaou - 08/10/19

451-BCCG : 56 WHr, 4-Cell Battery

benjamin lee - 28/10/20
