Dell Inspiron 15 Gaming 7567 Hard Drive Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 15 Gaming 7567 Hard Drive Replacement

Difficulty

Easy

Steps

13

Time Required

4 - 9 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Hard Drive.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: The latch on the hard-drive locking connector is fragile. Pulling the latch forcefully may damage the hard-drive locking connector. Exercise care when handling the latch on the hard-drive locking connector.

  2. pWy2UQNBomAS6jG5

    • Using a plastic scribe, lift the latch and use the pull tab to disconnect the hard-drive cable from the system board.

  3. 6IWUwpCTZoyKIqRA

    • Remove the four screws (M2.5x3 Ladder type) that secure the hard-drive assembly to the computer base.

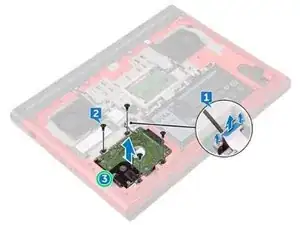

  4. fcTuyqJ5yLuBCXe5

    • Lift the hard-drive assembly, along with its cable, off the computer base.

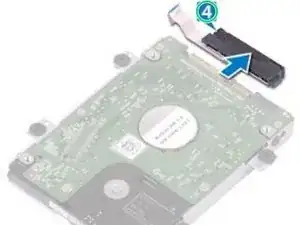

  5. GLcwqbD5m4OWrCGC

    • Disconnect the interposer from the hard-drive assembly.

  6. GlUGtUdaioXwZA2V

    • Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

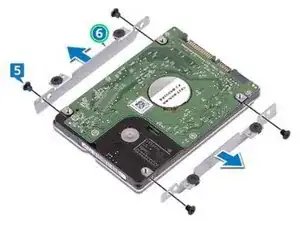

  7. mBEsUoPL3XJiJQAB

    • Remove the hard-drive bracket off the hard drive.

  8. BNsFneecEONSkddK

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive.

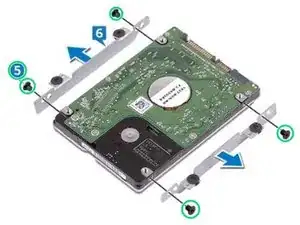

  9. ZMNCLiHVgGDFiDKb

    • Replace the four screws (M3x3) that secure the hard-drive bracket to the hard drive.

  10. x3AGXKkCPrXaCwPC

    • Connect the interposer to the hard-drive assembly.

  11. VTKst3AmUZ5RQXT1

    • Align the screw holes on the hard-drive assembly with the screw holes on the computer base.

  12. rtucdIFv2ncRdInA

    • Replace the four screws (M2.5x3 Ladder type) that secure the hard-drive assembly to the computer base.

  13. jv4GMcxoAEWrZCTT

    • Connect the hard-drive cable to the system board and close the latch to secure the hard-drive cable.
