Dell Inspiron 15 5576 Gaming Display Assembly Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 15 5576 Gaming Display Assembly Replacement

Difficulty

Easy

Steps

15

Time Required

4 - 9 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Display Assembly.

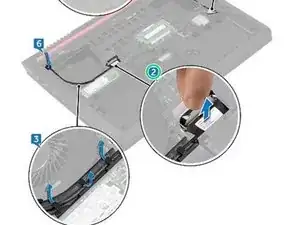

  2. ffFHKj652S5IRTgW

    • Using the pull tab, disconnect the display cable from the system board.

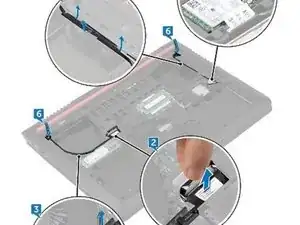

  3. pmmptNubMVnjKZMB

    • Note the display-cable routing and remove the cable from the routing guides on the computer base.

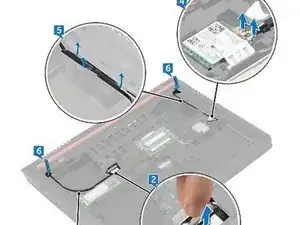

  4. 5FIxGfpnEFWbMgZE

    • Disconnect the antenna cables from the wireless card.

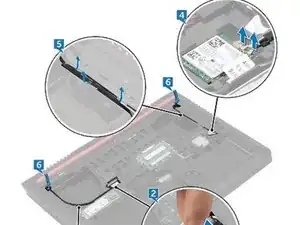

  5. WaAUxOIcVwNRARNu

    • Note the antenna-cable routing and remove the antenna cables from the routing guides on the computer base.

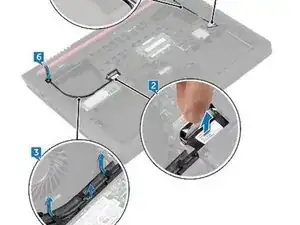

  6. X1VRcdvsVqRDIrra

    • Slide the display cable and antenna cables through the slots on the computer base.

  7. iHkr1IoyPjCxNfRW

    • Remove the four screws (M2x5) that secure the display assembly to the computer base.

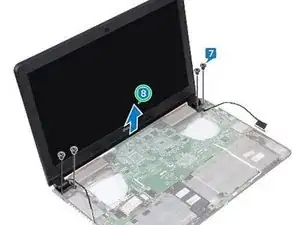

  8. Du4QfCQB13SyxLoa

    • Lift the display assembly off the computer base.

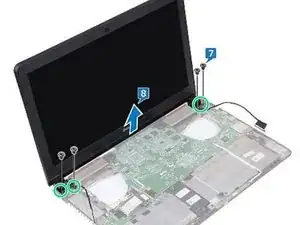

  9. 2wf2BYHZjovNKICG

    • Align the screw holes on the NEW display assembly with the screw holes on the computer base.

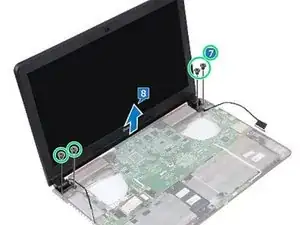

  10. JevU1OGeZJ1OTNJu

    • Replace the four screws (M2x5) that secure the display assembly to the computer base.

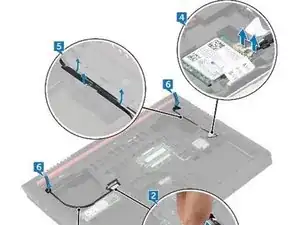

  11. rJXCcKgIO1cbhsDs

    • Slide the display cable and antenna cables through the slot on the computer base.

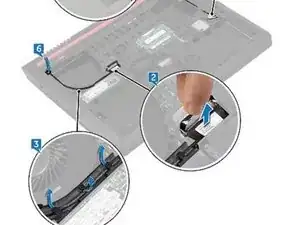

  12. gpLuPLIQ2lZwmtOq

    • Close the display and turn the computer over.

    • Route the display cable and antenna cables through the routing guides on the computer base.

  13. PCdBWhgdRN3pIbhJ

    • Connect the antenna cables to the wireless card.

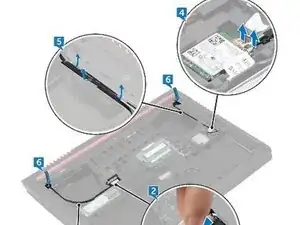

  14. MMM3yZSte5B1HyeI

    • Connect the display cable to the system board.

    • Close the display and turn the computer over.
