Dell Inspiron 1410 Hard Drive Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 1410 Hard Drive Replacement

Difficulty

Easy

Steps

6

Time Required

3 - 20 minutes

Introduction

In this guide, we will show you how to remove and replace the Hard Drive.

  1. cqF3TcSwR2yBHhCk

    • CAUTION: Before working inside your computer, read the safety information that shipped with your computer. Follow the procedures in Before You Begin.

    • CAUTION: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.

    • Remove the two screws securing the hard drive assembly to the system board.

  2. iiuZFrwZYBCrRgxx

    • Holding the connector end of the hard drive assembly, pull the hard drive assembly from the system board connector.

  3. RpC2EuJyOsujZ4r4

    • Press down on the hard drive at the non-connector end slot to remove the hard drive off the hard drive cage.

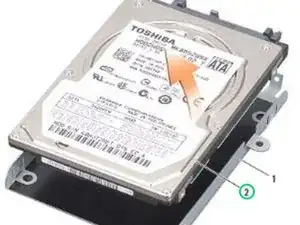

  4. dHnSDFyGvpWT1VGv

    • Place the NEW hard drive in the hard drive cage and press it down until it snaps into place.

  5. x3rXeH3LikOIZhFB

    • Push down the hard drive assembly in place by aligning the hard drive connector with the system board connector.

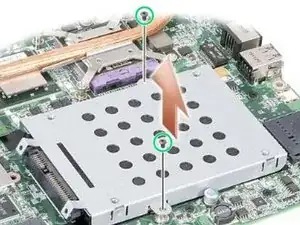

  6. cMP2jCxUAlHApv65

    • Replace the two screws securing the hard drive assembly to the system board.
