Dell Inspiron 14 N4050 Display Assembly Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 14 N4050 Display Assembly Replacement

Difficulty

Easy

Steps

9

Time Required

8 - 20 minutes

Introduction

In this guide, we will show you how to remove and replace the Display Assembly.

  1. Sh2RQuJdXbGpon2f

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the display cable from the connector on the system board.

  2. jQM14BPPJEsQETXa

    • Disconnect the Mini-Card antenna cables from the connectors on the Mini-Card.

  3. WhqoeGRF3VmP4r4R

    • Make a note of the display cable and Mini-Card antenna cables routing and remove the cables from the routing guides.

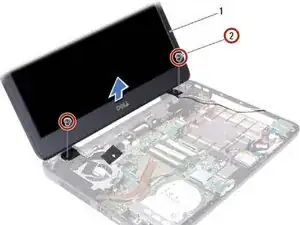

  4. aEUvs2dFUYCVddLn

    • Remove the two screws that secure the display assembly to the computer base.

  5. dvccITw4FragVEPP

    • Lift and remove the display assembly out of the computer base.

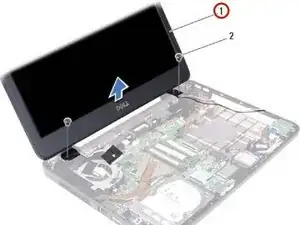

  6. xLMbKGvOUifqj4lh

    • Place the NEW display assembly in position and replace the two screws that secure the display assembly to the computer base.

  7. U3Z51e4kO2BtlAC4

    • Route the display cable and Mini-Card antenna cables through the routing guides.

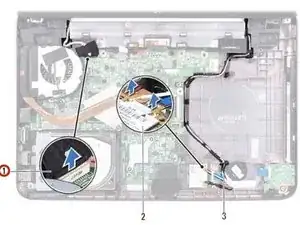

  8. fJx3t1JbfPUIAkl4

    • Connect the display cable to the connector on the system board.

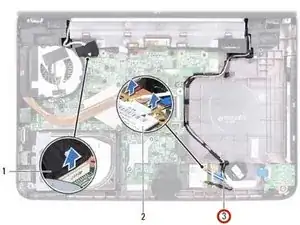

  9. RAwZGD1HZp66KvcD
    RAwZGD1HZp66KvcD

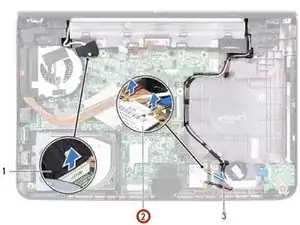

    lNtklWkQtN3eLyos

    • Connect the Mini-Card antenna cables to the Mini-Card.
