Dell Inspiron 14 N4030 Hard Drive Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 14 N4030 Hard Drive Replacement

Difficulty

Easy

Steps

7

Time Required

2 - 8 minutes

Introduction

In this guide, we will show you how to remove and replace the Hard Drive.

  1. Oq4h44eltAYOkOZU

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the hard-drive assembly to the computer base.

  2. DVffpslhGJIyNFn3

    • Slide the hard-drive assembly out of the hard-drive compartment.

  3. Cb3XINKVfDMGBoLh

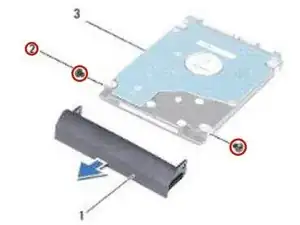

    • Remove the two screws that secure the hard-drive bezel to the hard drive.

  4. TAWQB2HM3o3eluwX

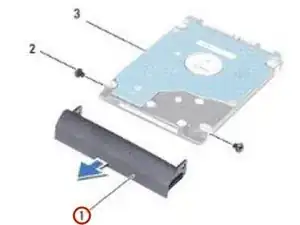

    • Pull the hard-drive bezel away from the hard drive.

  5. pPvBgx2kWJgOdCkZ

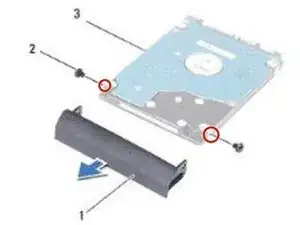

    • Align the screw holes on the NEW hard-drive bezel with the screw holes on the hard drive and replace the two screws.

  6. AVA1VXmZmYwXNUWL

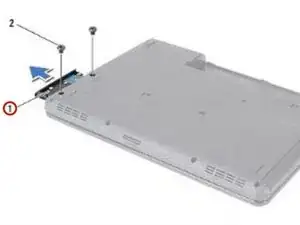

    • Slide the hard-drive assembly into the hard-drive compartment until it is fully seated.

  7. THIsvLHRhBqi1Lnc

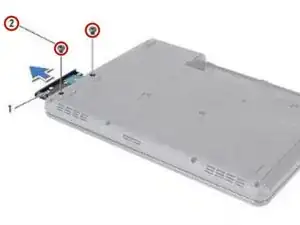

    • Replace the two screws that secure the hard-drive assembly to the computer base.
