Dell Inspiron 14 M4010 Hard Drive Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 14 M4010 Hard Drive Replacement

Difficulty

Easy

Steps

8

Time Required

8 - 25 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. kspEiQO2CDlJ1yle

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • WARNING: If you remove the hard drive from the computer when the drive is hot, do not touch the metal housing of the hard drive.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Remove the two screws that secure the hard-drive assembly to the system board.

  2. QseX2YRUFV4OBr31

    • Slide the hard-drive assembly to disconnect it from the connector on the system board.

  3. uc4O1uBvDCQkAkIH

    • Lift the hard-drive assembly away from the system board.

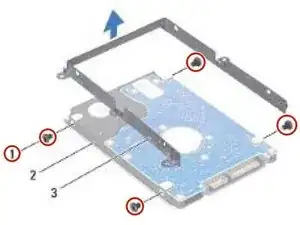

  4. 6NKuISgdIW3qVbXx

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

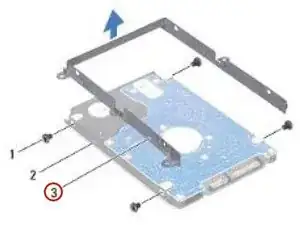

  5. LBEN2tjEoImtuSBL

    • Lift the hard-drive bracket off the hard drive.

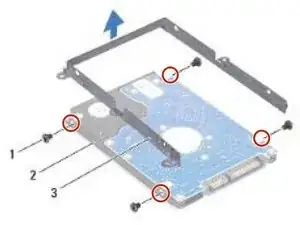

  6. Vkfbbn3X2V1EvsbD

    • Align the screw holes on the hard-drive bracket with the screw holes on the NEW hard drive and replace the four screws.

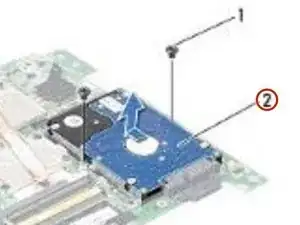

  7. 1uvC5jXUtPkgD3HX

    • Slide and push the hard-drive assembly to connect it to connector on the system board.

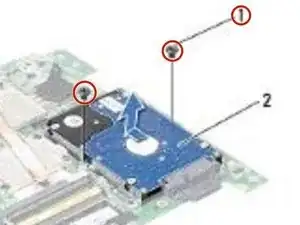

  8. AFwEX6fCJSRN6DZb

    • Replace the two screws that secure the hard-drive assembly to the system board.
