Dell Inspiron 14 M4010 Display Assembly Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 14 M4010 Display Assembly Replacement

Difficulty

Easy

Steps

11

Time Required

4 - 25 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. aUQpl2tkFVmSLsAa

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • Remove the two screws that secure the display assembly to the computer base.

  2. Rg1uSkbxqjLWevuT

    • Turn the computer over and open the display as far as possible.

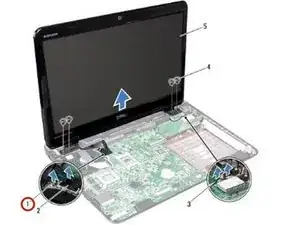

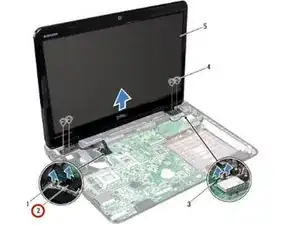

  3. bIitZAKGGMXeerr6
    bIitZAKGGMXeerr6
    sJCEHC6WOTAuIhsM

    • Disconnect the display cable from the connector on the system board, and remove the display cable grounding screw.

  4. a1BCfDWXHbk4ENvS

    • Make a note of the Mini-Card antenna cables and display cable routing and remove the cables from the routing guides.

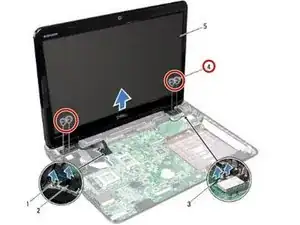

  5. 2adTAEporCHDQJXW

    • Hold the display assembly in place and remove the four screws that secure the display assembly to the computer base.

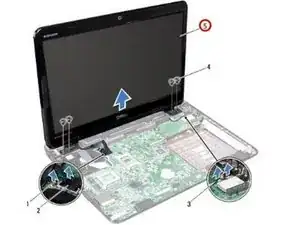

  6. nf2cqcDivS3jvfAr

    • Lift and remove the display assembly out of the computer base.

  7. ksuFtDoBQdlg2y1x

    • Place the NEW display assembly in position and replace the four screws (two on each side) that secure the display assembly to the computer base.

  8. NkWJ2oKfMXlOrb4N

    • Route the Mini-Card antenna cables and display cable through the routing guides.

  9. TpLE3YYogLansxTS

    • Connect the display cable to the connector on the system board, and replace the display cable grounding screw.

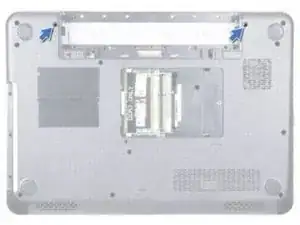

  10. GNZUL2YhivANcVL1

    • Close the display and turn the computer over.

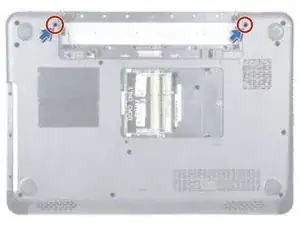

  11. nQIqgEfVQTuvEKXA

    • Replace the two screws that secure the display assembly to the computer base.

    • CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in damage to the computer.
