Dell Inspiron 14 M4010 Battery Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 14 M4010 Battery Replacement

Difficulty

Very easy

Steps

5

Time Required

50 seconds - 2 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Battery.

  1. nIoMGn4sR4nqGqCO

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • Shut down the computer and turn it over.

    • Slide the battery lock latch until it clicks into place.

  2. rjCwIUJyf5S2huD3

    • Slide the battery release latch to the unlock position.

  3. oHar1FpkU4q4HRRW

    • Slide and lift the battery out of the battery bay.

  4. aMUGwX1O3udYj63d

    • Align the tabs on the NEW battery with the slots on the battery bay.

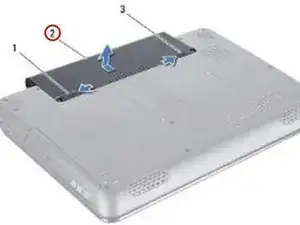

  5. 1NFMgPgXBKN33hPx

    • Slide the battery into the battery bay until it clicks into place.
