Dell Inspiron 14 3462 Display Assembly Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 14 3462 Display Assembly Replacement

Difficulty

Easy

Steps

14

Time Required

3 - 35 minutes

Introduction

In this guide, we will show you how to remove and replace the Display Assembly.

  1. lUsgLSmZrWjjFxKi

  2. CDqpNnTECsAhjjaK

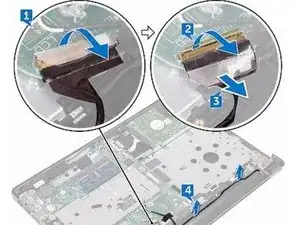

    • Open the latch that secures the display cable into position.

    • Disconnect the display cable from the system board.

  3. XIIu1WyOTKMpxJr6

    • Note the antenna-cable routing, and remove the antenna cable from the routing guides on the palm-rest assembly.

  4. BwhTTDdsCOpFCa3G

    • Turn the computer over and open the display at an angle of 90 degrees.

    • Turn the computer over and place it on the edge of the table in a position that allows access to the screws on the display hinges.

  5. JpI5iiFsNBCPxSSq

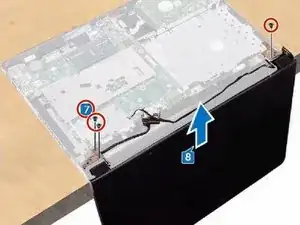

    • Remove the three screws (M2.5x8) that secure the display-hinge brackets to the palm-rest assembly.

  6. QXa3RlWE3BQHjIEQ

    • Carefully lift the display assembly from the palm-rest assembly.

  7. bOdt2ADxYGpUOKmM

    • Carefully place the display assembly on a clean and flat surface.

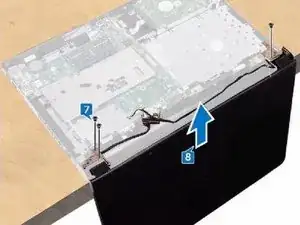

  8. 6XFe3LtDbkCr1EMp

    • Place the NEW display assembly at the edge of the table.

  9. UEc4rSuRPDOh2kjQ

    • Align the screw holes on the palm-rest assembly with the screw holes on the display hinges.

  10. TrI1sLRGfxfyAMZN

    • Replace the three screws (M2.5x8) that secure the display hinges to the palm-rest assembly.

  11. MjYArNqOfyIaIUlA

    • Route the antenna cables through the routing guides on the palm-rest assembly.

  12. TFYeE2kXbHg4VAiD

    • Connect the display cable from the system board.

  13. OfDH6HgHHgMFeCQK

    • Close the latch that secures the display cable to the system board.

  14. 5WdnoisSLBjTZhUI

    • Adhere the tape that secures the display cable to the system board.
