Dell Inspiron 14 3459 Display Assembly Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 14 3459 Display Assembly Replacement

Difficulty

Easy

Steps

12

Time Required

5 - 20 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. GsoZNOXeLdYjAId2

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before Working Inside Your Computer. After working inside your computer, follow the instructions in After Working Inside Your Computer.

    • Close the display and turn the computer over.

    • Slide the antenna cables into the slot on the computer base.

  2. t5FqxIuICsDJlxX3
    t5FqxIuICsDJlxX3
    TwROZTbiBKnRZv5P

    • Turn the computer over and open the display.

    • Open the latch and disconnect the I/O-board cable from the I/O board.

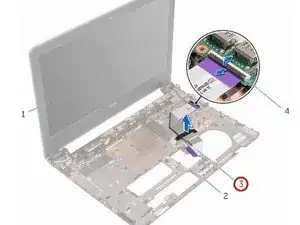

  3. N2GLaQQHM2UlClvK

    • Remove the I/O-board cable from the computer base.

  4. uGMFIMG1qJ4OrcAy

    • Note the antenna cable routing and remove the antenna cables from the routing guides on the computer base.

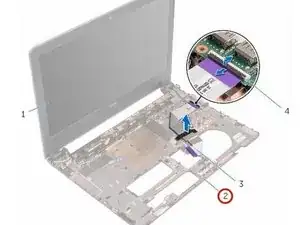

  5. cSGWxfd1aNhrgdIL

    • Note the display cable routing and remove the cable from its routing guides on the computer base.

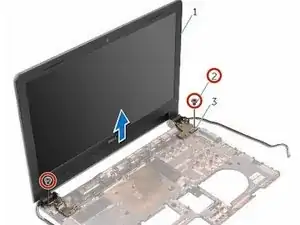

  6. CS5oHUKPWqdHqcC5

    • Remove the screws that secure the display hinges to the computer base.

  7. 3ZB2Fc1MndBAey2M

    • Lift the display assembly off the computer base.

  8. jBdQKjOXUMCpJLYC

    • Align the screw holes on the display hinges with the screw holes on the computer base.

  9. WLFYNolIwSDiuRia

    • Replace the screws that secure the display hinges to the computer base.

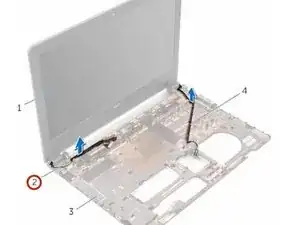

  10. TZgyLDNiPhpwINKA

    • Route the display cable through the routing guides on the computer base.

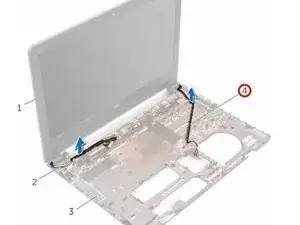

  11. 5qSa4NBQWcrSgYsp

    • Route the antenna cables through the routing guides on the computer base and slide the antenna cables through the slot on the computer base.

  12. ZPmAt6J4XjZ5g2E1

    • Slide the I/O-board cable into the I/O board and close the latch to secure the cable.
