Dell Inspiron 13-5368 Wifi Adapter Replacement

Written By: Raj Dhavalikar
  • Comments: 0
Dell Inspiron 13-5368 Wifi Adapter Replacement

Difficulty

Moderate

Steps

6

Time Required

10 minutes

Introduction

Is your computer experiencing trouble with connecting to the internet? Consider using this guide to replace the network adapter card in your laptop.

  1. kQpJBwceqtHM1GhJ

    • Use a Phillips #0 screwdriver to remove the 9.6 mm screws securing the back plate of the laptop.

  2. HGUXKPGKPC2lGGul

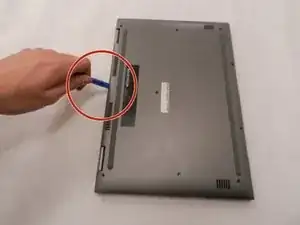

    • Use a prying tool to remove the back plate.

  3. RMlKaxdpTjsKCCBN

    • Use a Phillips #0 screwdriver to remove the three 3 mm screws holding the battery in place.

  4. KHDCwOoiWUJZDlJL

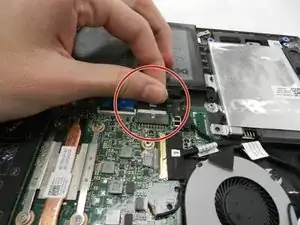

    • Disconnect the cable connecting the battery to the motherboard, and then remove the battery

  5. 5ZlSMZVEVHsAOFEm

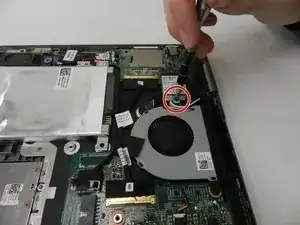

    • Use a Phillips #0 screwdriver to remove the 3mm screw and the metal bracket that holds the network adapter card in place.

  6. vOXJcA1uRNtbJFqB
    vOXJcA1uRNtbJFqB
    6lqyHwTwWEx2SBS2

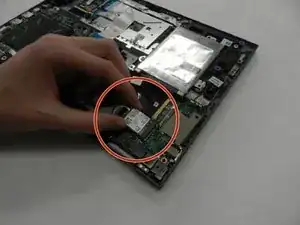

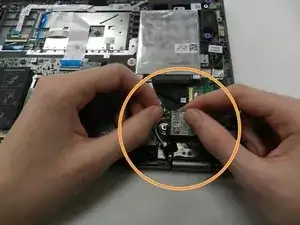

    • Pull out the network card.

    • To completely remove the network card, disconnect the two cords (white and black) from the adapter card. White on 1 and Black on 2.

Conclusion

To reassemble your device, follow these instructions in reverse order.
