Dell Inspiron 13 N3010 Hard Drive Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 13 N3010 Hard Drive Replacement

Difficulty

Easy

Steps

11

Time Required

4 - 35 minutes

Introduction

In this guide, we will show you how to remove and replace the Hard Drive.

  1. gZKtPYHheP4eHQTD

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

    • Remove the screw that secures the hard-drive assembly to the system board.

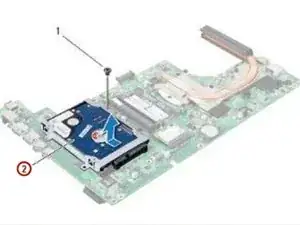

  2. vhRBwANd3l6ALHpH

    • Slide and disconnect the hard-drive assembly from the connector on the system board as indicated in the illustration.

  3. dBEnATrfpQc1gDxU

    • Lift the hard-drive assembly off the system board.

  4. S2WfeOpWs2ZLLJdc

    • Remove the four screws that secure the hard-drive bracket to the hard drive.

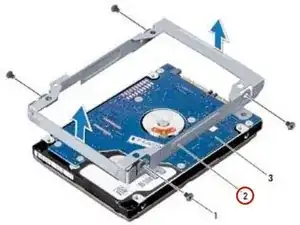

  5. 4ucWBsZDnlTZLx4C

    • Lift the hard-drive bracket away from the hard drive.

  6. MwCWNGcPnf3lcGVA
    MwCWNGcPnf3lcGVA
    tQIOOLKt4j5BlnEC

    • Place the NEW hard drive in the hard-drive bracket.

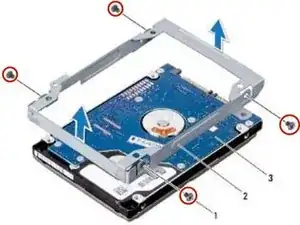

  7. mAKfRZDRAWSuT5qN

    • Replace the four screws that secure the hard-drive bracket to the hard drive.

  8. ILDlHIKFM22wimNw

    • Place the hard-drive assembly on the system board.

  9. qPOcpErDcDB2IDJA

    • Slide and connect the hard-drive assembly to the system board connector.

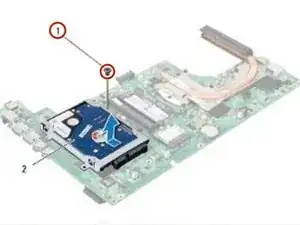

  10. 3UPqxnXBEwaRTVRJ

    • Replace the screw that secures the hard-drive assembly to the system board.

    • Turn over the system board assembly.

Conclusion

To reassemble your device, follow these instructions in reverse order.
