Dell Inspiron 11-3138 Display Assembly Replacement

Written By: Terrence15

Comments: 0

Dell Inspiron 11-3138 Display Assembly Replacement

Difficulty

Easy

Steps

11

Time Required

20 - 30 minutes

Introduction

In this guide, we will show you how to remove and replace the Display Assembly.

Tools

Phillips #0 Screwdriver

Step 1

eMGjMs6YtsgLpKSE

eMGjMs6YtsgLpKSE

IUeqs2YXGgogurHB

WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in "Before Working Inside Your Computer" After working inside your computer, follow the instructions in "After Working Inside Your Computer".

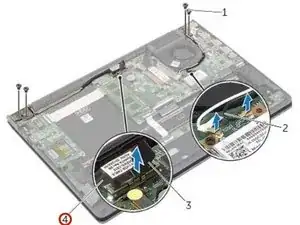

Using the pull tabs, disconnect the display cable from the system board.

Step 2

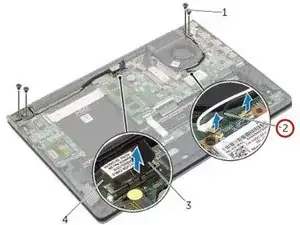

iVIdsBCaAA1NsOle

Disconnect the antenna cable from the wireless card and remove the cable from the routing guides on the fan.

Step 3

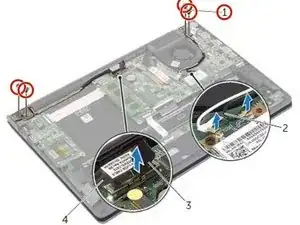

xlFVReQSAssWhn3M

Remove the screws that secure the display assembly to the palm-rest assembly.

Step 4

uipMsnYSQdUrEQ4L

uipMsnYSQdUrEQ4L

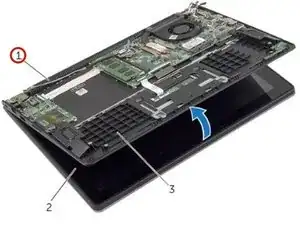

CPXkYJAhEEVjWVDc

Open the palm-rest assembly as far as possible to release the display hinge from the palm-rest assembly.

Step 5

QKyuWaWkg2TIPYLx

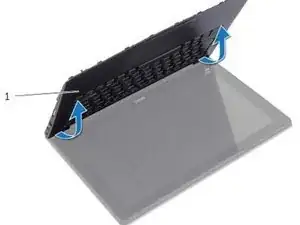

Lift the palm-rest assembly away from the display assembly.

Step 6

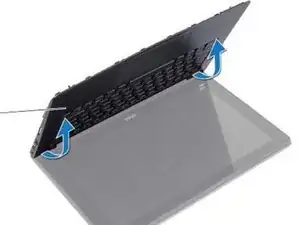

RXrhihOdQqr1amsi

Place the NEW palm-rest assembly on the display assembly.

Step 7

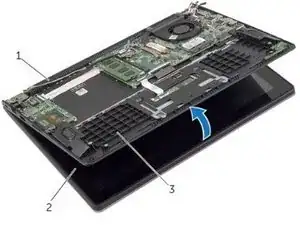

vZjxdE5gSkxrdMQ3

Align the screw holes on the palm-rest assembly with the screw holes on the display hinges and press down the display hinges to close the palm-rest assembly.

Step 8

ALErZIrGGUnDbVUM

Replace the screws that secure the display assembly to the palm-rest assembly.

Step 9

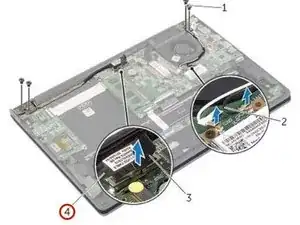

1eqF62DRPMMaZgEQ

Connect the display cables to the system board.

Step 10

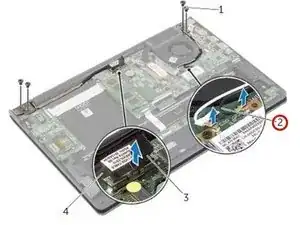

SwCDn62nccAOGsPl

Route the antenna cables through the routing guides on the fan.

Step 11

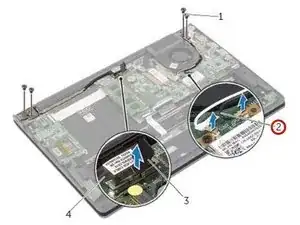

W3RyYBZHIiTOYoRX

Connect the antenna cables to the wireless card.

Conclusion

To reassemble your device, follow these instructions in reverse order.
