Dell Inspiron 11 3169 Hard Drive Replacement

Written By: Terrence15
  • Comments: 0
Dell Inspiron 11 3169 Hard Drive Replacement

Difficulty

Easy

Steps

10

Time Required

25 - 40 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Hard Drive.

  1. VRFpYXANYAdtSRXM

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working inside your computer, follow the instructions in After working inside your computer.

    • CAUTION: Hard drives are fragile. Exercise care when handling the hard drive.

    • CAUTION: To avoid data loss, do not remove the hard drive while the computer is in sleep or on state.

    • Remove the screw that secures the hard-drive assembly to the palm-rest and keyboard assembly.

  2. t3RQ6CaDXIFWJeRE

    • Remove the screw that secures the hard-drive assembly to the system board.

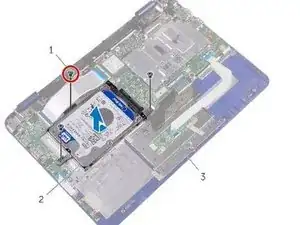

  3. 1bKJQTkAccToYBpx

    • Remove the screw that secures the hard-drive assembly to the I/O board.

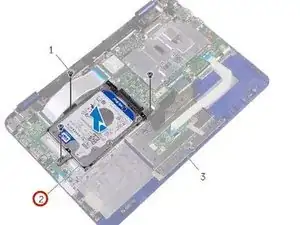

  4. T2s1mhvOtiMq6Nyg

    • Lift the hard-drive assembly off the palm-rest and keyboard assembly.

    • NOTE: The images in this chapter may differ from your computer depending on the processor you ordered.

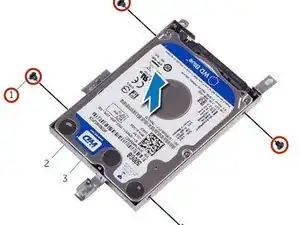

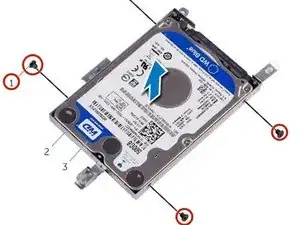

  5. aqkI4sJFnZOnpfOZ
    aqkI4sJFnZOnpfOZ
    moG312Let5syuZwC

    • Remove the screws that secure the hard-drive bracket to the hard drive.

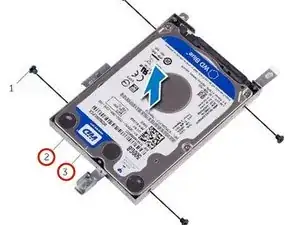

  6. KkXuYhplUOvLUFCW
    KkXuYhplUOvLUFCW
    bBMkVtWcbHxIlwIE

    • Lift the hard drive from the hard-drive bracket.

  7. eZRKu3reMMnBCXur

    • Align the screw holes on the hard drive with the screw holes on the hard-drive bracket.

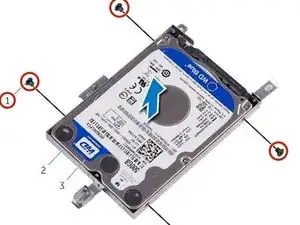

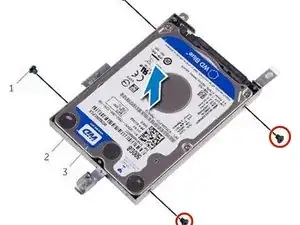

  8. RkYJMCGZF4aPPdRU
    RkYJMCGZF4aPPdRU
    lGM6YCfN2HuAkmtj

    • Replace the screws that secure the hard-drive bracket to the hard drive.

  9. rTvCGCiwFM4NYQr4

    • Align the screw holes on the hard-drive assembly with the screw holes on the palm-rest and keyboard assembly, system board and I/O board.

  10. mJovSLQlC6oLFVeP

    • Replace the screws that secure the hard-drive assembly to the palm-rest and keyboard assembly, system board and I/O board.

Conclusion

To reassemble your device, follow these instructions in reverse order.
