Dell Chromebook 3100 IO Board Replacement

Written By: Thomas
  • Comments: 0
Dell Chromebook 3100 IO Board Replacement

Difficulty

Moderate

Steps

7

Time Required

15 - 30 minutes

Introduction

This is a guide on how to remove the IO Board on a Dell Chromebook 3100.

Please note that the battery removal is not required for this guide, but it is strongly recommended.

  1. ouIw5quTELMobXxD
    ouIw5quTELMobXxD
    BCCxo3yitQDETNOP
    SN1rOyiAsn2BAJpv

    • Flip the laptop so the bottom is facing upwards.

    • Loosen the nine screws from the back panel using a Phillips #0 screwdriver.

  2. eqTwOXLuoIdypOUL

    • Pry the back panel away from the rest of the laptop using an iFixit opening tool.

  3. WLqhACjnh6iDsvmI
    WLqhACjnh6iDsvmI
    4lEZBBlnYlkiKMbB

    • Remove the screws attached to the battery using a Phillips #0 screwdriver.

    • Disconnect the battery from the motherboard by gently pulling on the connector cable at the top of the battery.

  4. Tb5NG6QxZL6kdeLG

    • Carefully remove the battery.

  5. isvJVao3GqibXKjb

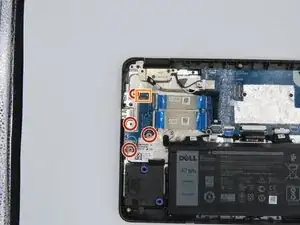

    • Remove the screws from the IO Board using a Phillips #0 screwdriver.

    • Carefully disconnect the IO power cable labeled with "IO" and "MB."

  6. onOc6f5fprDS5oZu
    onOc6f5fprDS5oZu
    mRH1SsGfTcaIkED6

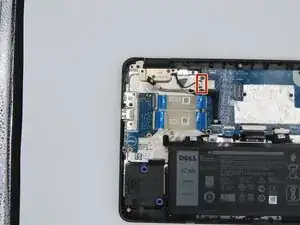

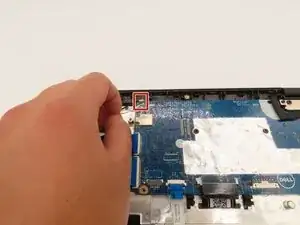

    • Carefully disconnect the IO connector cables by applying light pressure and popping them off of the motherboard.

  7. UthgLG3qm2tRthWj

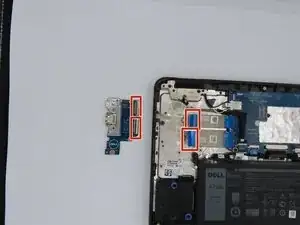

    • Remove the motherboard ribbon cables from the IO board and set the IO board to the side.

Conclusion

To reassemble your device, follow these instructions in reverse order with the new IO Board.
