Introduction
In the case that the screen on your Dell Chromebook 3100 2-in-1 doesn’t show anything or the touch display is unresponsive, your laptop may have a faulty screen.
Note: Some Dell Chromebook 3100 configurations don’t have a touch screen.
Tools
Parts
-

                  -
            Using a Phillips #1 screwdriver, remove the three 4 mm screws that secure the battery.
-
            Remove the adhesive tape that secures the battery in place.

-

-

                  -
            Remove the single 3 mm screw that secures the WLAN bracket to the system board using a Phillips #1 screwdriver.
-
            Lift the WLAN bracket from the system board.
-

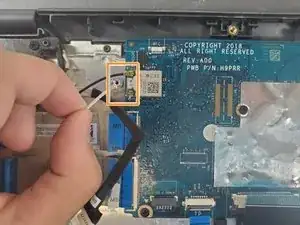

            After lifting the bracket, carefully unplug the two coaxial cables.

-

-

                  -

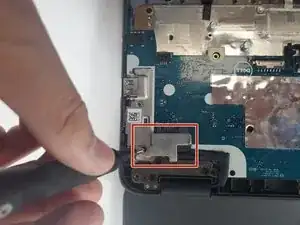

            Remove the single 4 mm screw that secures the eDP bracket to the motherboard using a Phillips #1 screwdriver.
-

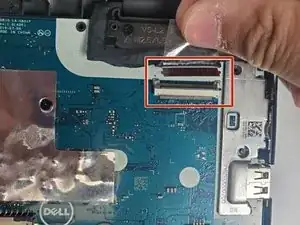

            Remove the eDP bracket.

-

-

                  -

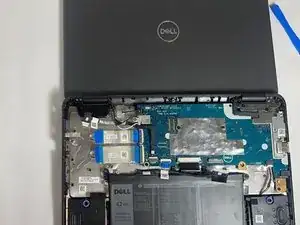

            Open the system to 180 degrees and place the computer on a flat surface, with the display hinges facing up.

-

-

                  -

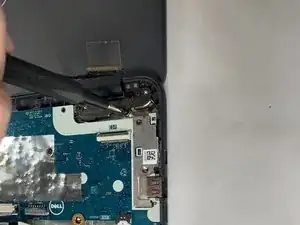

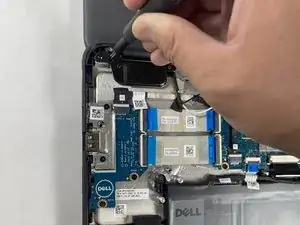

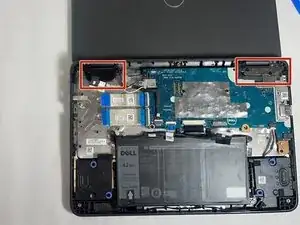

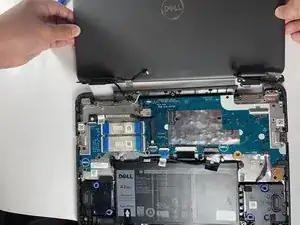

            Remove the three (on both hinges) 5 mm display hinge bracket screws that secure the display assembly to the system using a Phillips #1 screwdriver.

-

-

                  -

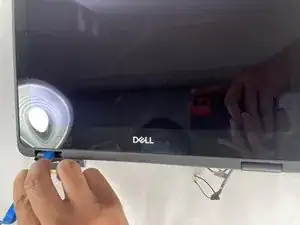

            Use the opening tool to open the display panel starting from the pry points located above the left and right hinges.
-
            Work your way around, through the left and right side of the panel, and carefully flip the display panel over.

-

-

                  -

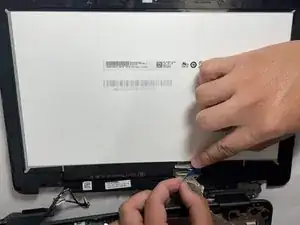

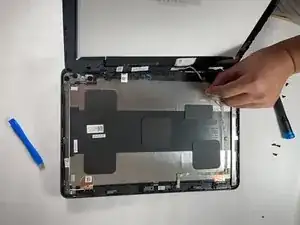

            Peel back the adhesive tape securing the display cable on the back of the display panel and separate the display.

-

To reassemble your device, follow these instructions in reverse order.
