Dell Alienware M18x R2 Display Assembly Replacement

Written By: Terrence15
  • Comments: 0
Dell Alienware M18x R2 Display Assembly Replacement

Difficulty

Easy

Steps

14

Time Required

15 - 45 minutes

Introduction

In this guide, we will show you how to remove and replace the Display Assembly.

  1. MPdNOVZMHIgRjBQH

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

    • Disconnect and peel off the video-card connector cable from the connectors on the system board.

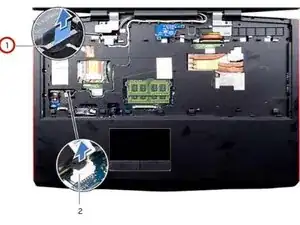

  2. R1JkKIqZfifQ46fL

    • Pull the pull-tab to disconnect the display cable from the connector on the system board.

  3. p2MQtDCxKRxOItiF

    • Disconnect the LED-logo board cable from the connector on the system board.

  4. PbY1Vn5udsIiOClR

    • Close the display and turn the computer over.

    • Remove the screws that secure the display assembly on the computer base.

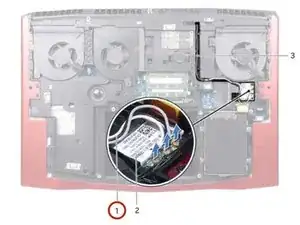

  5. wHdqSV13Cw6rdgYe

    • Disconnect the antenna cables from the connectors on the Mini-Card.

    • Note the routing of the antenna cables, and then remove the cables from the routing guides on the computer base.

    • Turn the computer over and open the display.

    • Note the routing of the display cable and LED-logo board cable, and then remove the cables from the routing guides on the palm-rest assembly.

  7. Squ2fk5shGJD3H6w

    • Remove the screws, on the display hinges, that secure the display assembly to the computer base.

  8. lCOOQhPnjIZLOYUR

    • Gently slide out the antenna cables through the slot on the computer base.

  9. R64aNlVXjJiaw1gv

    • Move the display to a perpendicular position to the computer base, and then lift the display assembly off the computer.

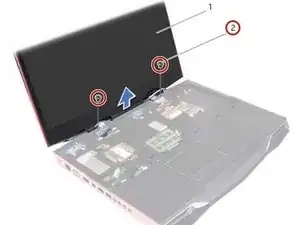

  10. kNxI4gupWABBQhVX

    • Place the NEW display assembly in position and replace the screws, on the display hinges, that secure the display assembly to the computer base.

    • Route the display cable and LED-logo board cable through the routing guides on the palm-rest assembly.

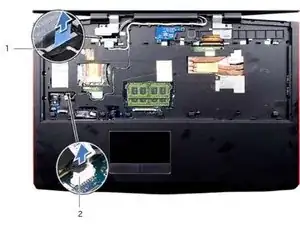

  12. ZRGGhPcFqL3Q4yOY

    • Connect the display cable, video-card connector cable, and LED-logo board cable to the respective connectors on the system board.

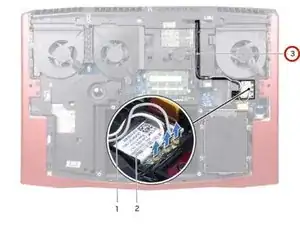

  13. eSY2n5LsChmgcoJF

    • Slide the Mini-Card antenna cables through the slot on the computer base.

    • Close the display and turn the computer over.

    • Route the Mini-Card antenna cables through the routing guides on the computer base.

Conclusion

To reassemble your device, follow these instructions in reverse order.
