Dell Alienware M18x Hard Drive Replacement

Written By: Terrence15

Difficulty

Easy

Steps

Time Required

15 - 40 minutes

Introduction

In this guide, we will show you how to remove and replace the Hard Drive.

WARNING: Before working inside your computer, read the safety information that shipped with your computer.
CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

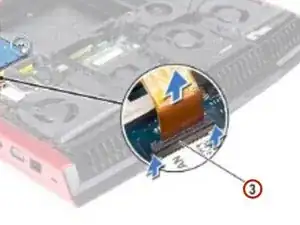

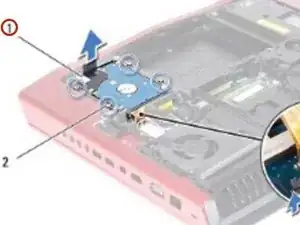

Lift the connector latch that secures the hard-drive cable to the connector on the system board, and then disconnect the hard-drive cable from the connector on the system board.

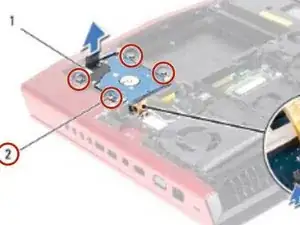

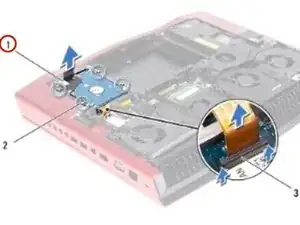

Loosen the four captive screws that secure the hard-drive assembly to the computer base.

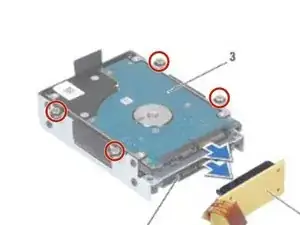

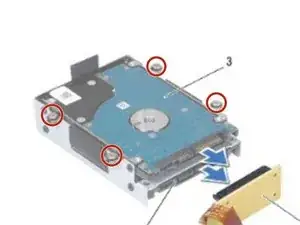

Remove the four screws that secure the primary hard drive (HDD 0) and lift the hard drive out of the hard -drive bracket.

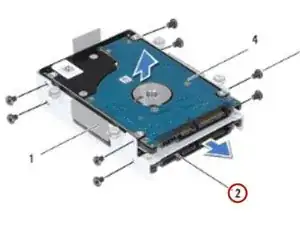

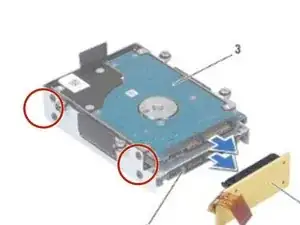

Remove the four screws that secure the secondary hard drive (HDD 1) and slide the hard drive out of the hard-drive bracket.
CAUTION: When the hard drive is not in the computer, store it in protective antistatic packaging (see "Protecting Against Electrostatic Discharge" in the safety instructions that shipped with your computer).

If applicable, replace the four screws that secure the secondary hard drive (HDD 1) to the hard-drive bracket.

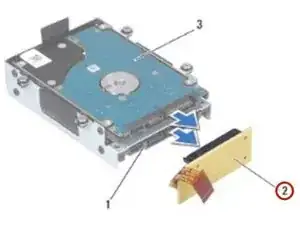

Connect the interposer to the hard drives.
