Dell Alienware M18x Battery Pack Replacement

Written By: Terrence15
  • Comments: 0
Dell Alienware M18x Battery Pack Replacement

Difficulty

Easy

Steps

4

Time Required

9 - 15 minutes

Introduction

In this guide, we will show you how to remove and replace the Battery Pack.

  1. hqXx6TTD1WyhIcRf

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer)

    • CAUTION: Only a certified service technician should perform repairs on your computer. Damage due to servicing that is not authorized by Dell is not covered by your warranty.

    • Shut down the computer and turn it over.

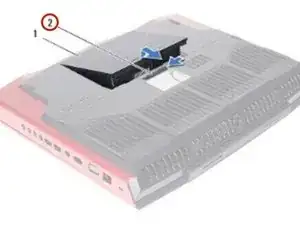

  2. soMKRtqkBSBJIqxh
    soMKRtqkBSBJIqxh

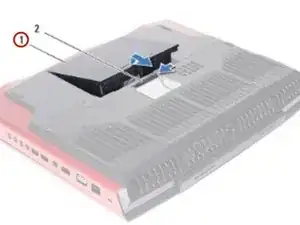

    Qpr3qCgfvPk3eS3T

    • Slide the battery latch to the unlock position. The battery pack pops up.

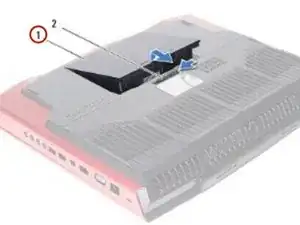

  3. DUfajhQwtUReimjb

    • Lift and slide the battery pack away from the battery bay.

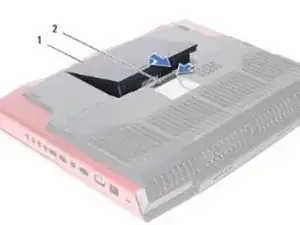

  4. TxMeik1RRhTdsy2s

    • Align the tabs on the NEW battery with the slots on the battery bay and snap the battery into place.

Conclusion

To reassemble your device, follow these instructions in reverse order.
