Dell Alienware M17x R4 Display Assembly Replacement

Written By: Terrence15
  • Comments: 0
Dell Alienware M17x R4 Display Assembly Replacement

Difficulty

Easy

Steps

11

Time Required

15 - 45 minutes

Introduction

In this guide, we will show you how to remove and replace the Display Assembly.

  1. gWnQeyGKmNLj6yyc

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin.

    • Loosen the captive screws that secure the display cable to the system board.

  2. VocXuqGT4gEFB3bW

    • Using the pull-tab, pull the display cable to disconnect the display cable from the connector on the system board.

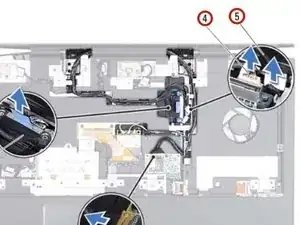

  3. bGOMNZHCFEkR1TXV

    • Disconnect the camera cable and infrared cable from the respective system board connectors.

  4. 1rAWbdJBX4YigvXm
    1rAWbdJBX4YigvXm
    qvIYadK6fpGnFsMQ

    • Note the routing of the display cable, camera cable, infrared cable, wirelessHD card cable, Mini-Card antenna cables and remove the cables from the routing guides on the palm rest assembly.

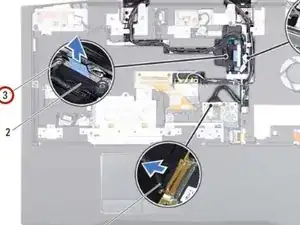

  5. DnKLNku4xpj11SDR

    • Remove the screws that secure the display assembly to the computer base.

  6. QRwH4NwxKAINUeNL

    • Lift the display assembly off the computer.

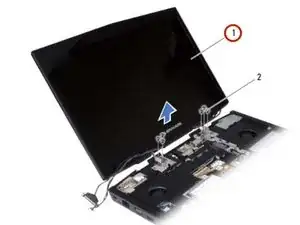

  7. cioKryulHafeUG4U
    cioKryulHafeUG4U
    PLVVv1c1aGRvcRAb

    • Place the NEW display assembly in position and replace the screws that secure the display assembly to the computer base.

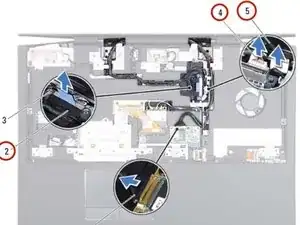

  8. orGpQL36BSi5Bs1B
    orGpQL36BSi5Bs1B

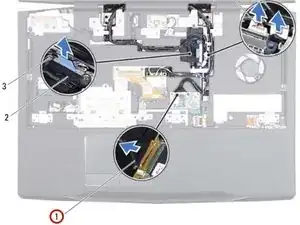

    lMlML4yPSycICW6F

    • Route the display cable, camera cable, infrared cable, wirelessHD card cable, and Mini-Card antenna cables through the routing guides on the palm rest assembly.

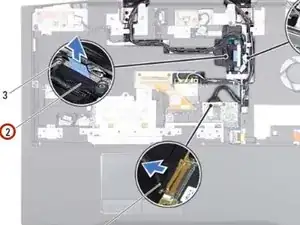

  9. A3cxnAWjX4ZapusG

    • Connect the display cable to the connector on the system board.

  10. a23pxNUEk1fkBbG4

    • Tighten the captive screws that secure the display cable to the system board.

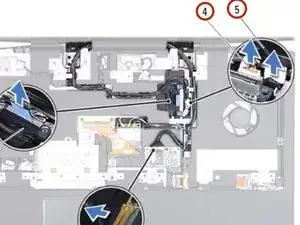

  11. mBPNX5eQLt4R5GpE

    • Connect the camera cable and infrared cable to the respective system board connectors.

Conclusion

To reassemble your device, follow these instructions in reverse order.
