Dell Alienware M17x R3 Memory Modules Replacement

Written By: Terrence15
  • Comments: 0
Dell Alienware M17x R3 Memory Modules Replacement

Difficulty

Easy

Steps

5

Time Required

9 - 15 minutes

Introduction

In this guide, we will show you how to remove and replace the Memory Modules.

  1. CcoBNe4dkFjFTMKh
    CcoBNe4dkFjFTMKh
    qcOQmDnFy5RPvKrE

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory module securing clips.

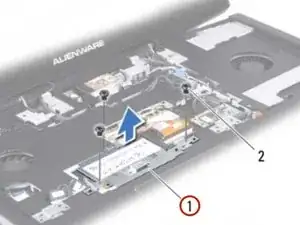

    • Remove the three screws that secure the memory-module cover to the palm rest assembly.

  2. SxBfApOGbFlGrstt
    SxBfApOGbFlGrstt
    2EGARyBditgdlQuR
    SLmFmktSIYYRE3MV

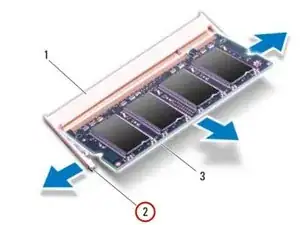

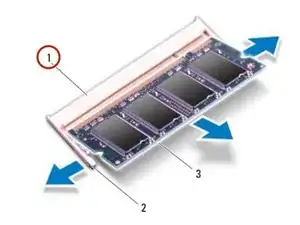

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector un til the memory module pops up.

  3. BKuWIMgpMAraRqXM
    BKuWIMgpMAraRqXM
    ZrZjStkXJC3RWqdl

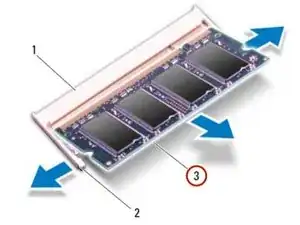

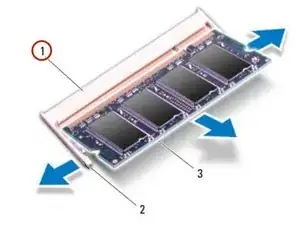

    • Remove the memory module from the memory-module connector.

  4. iIOpVNsCbDMLXvtp

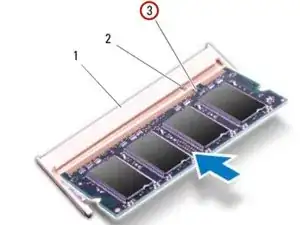

    • If you need to install memory modules in two connectors, install a memory module in the lower connector before you install a memory module in the upper connector.

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

  5. MEsAFLylNbW2TC5B

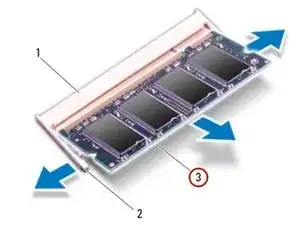

    • Slide the memory module firmly into the connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

Conclusion

To reassemble your device, follow these instructions in reverse order.
