Dell Alienware M14x Memory Module Replacement

Written By: Terrence15
  • Comments: 0
Dell Alienware M14x Memory Module Replacement

Difficulty

Easy

Steps

13

Time Required

15 - 20 minutes

Introduction

In this guide, we will show you how to remove and replace the Memory Module.

  1. LVx3sJxNIrObEGxy

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Disconnect the battery-pack cable from the connector on the system board.

  2. VR5hiWIjZCsbAcKR

    • Loosen the two captive screws that secure the battery pack to the computer base.

  3. NGQk5bvNFiQHPIF2
    NGQk5bvNFiQHPIF2
    pNHNHwJ5SqwGJJGu

    • Using the pull-tab, lift the battery pack off the computer base.

  4. qTRQmJJO3NZ2bqQT

    • Place the NEW battery pack in the battery bay and tighten the two captive screws that secure the battery pack to the computer base.

  5. HYaEBDa1lstdru23

    • Connect the battery-pack cable to the connector on the system board.

  6. tAjMJZRekwtxwILu

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer.

    • Loosen the two captive screws that secure the memory-module cover to the computer base.

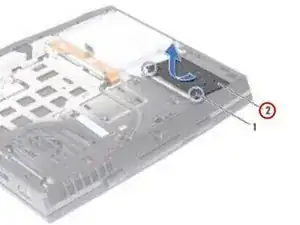

  7. Co5QuBtGKQaCYCHw

    • Slide the tabs on the memory-module cover out of the slots on the computer base.

  8. Mga5vaDpdgBOEYwD
    Mga5vaDpdgBOEYwD
    gKvR1TTZmcSMcRJq

    • CAUTION: To prevent damage to the memory-module connector, do not use tools to spread the memory module securing clips.

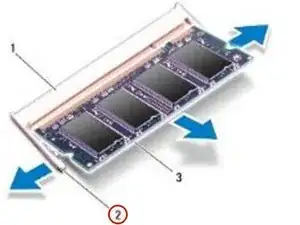

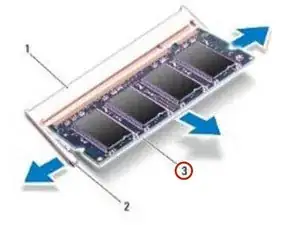

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  9. ytWiVa2xYVdeFiTJ
    ytWiVa2xYVdeFiTJ
    c3kdUgB3deWwQHcC

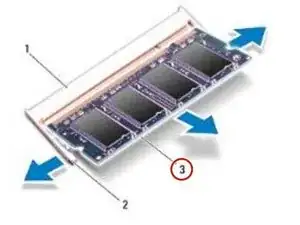

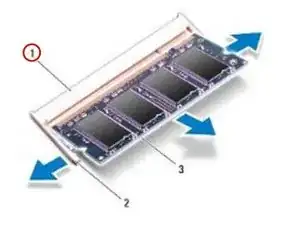

    • Remove the memory module from the memory-module connector.

  10. vOWvODWkYVwMwlse
    vOWvODWkYVwMwlse
    6cVX6upiPRJVrN6U

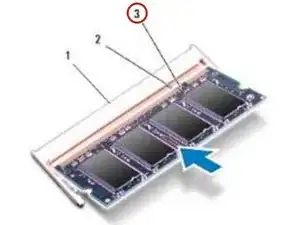

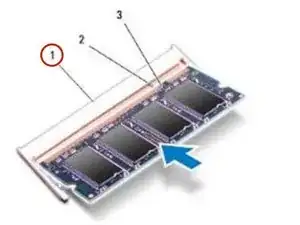

    • Align the notch in the NEW memory module with the tab in the memory- module connector.

  11. DPpHXrGLYgFOTjsk

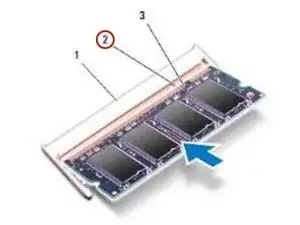

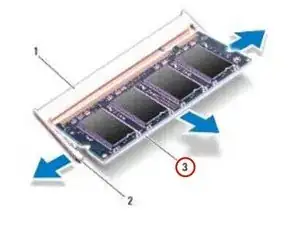

    • Slide the memory module firmly into the connector at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

  12. htUlbG1oLc3KayxW

    • Slide the tabs on the memory-module cover into the slots on the computer base and lower the memory-module cover into place.

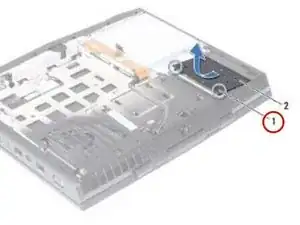

  13. VjxTUOpkikSORH5A

    • Tighten the two captive screws that secure the memory-module cover to the computer base.

Conclusion

To reassemble your device, follow these instructions in reverse order.
