Dell Alienware 18 Display Assembly Replacement

Written By: darrius
  • Comments: 0
Dell Alienware 18 Display Assembly Replacement

Difficulty

Easy

Steps

18

Time Required

20 - 30 minutes

Introduction

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. 4jo4suokVOoFrSaQ

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before You Begin

    • Close the display and turn the computer over.

  2. yYgrVOv3hX6NgwgV

    • Remove the screws that secure the display assembly to the computer base.

  3. XBQBwiehoMOq16Mu

    • Turn the computer over and open the display.

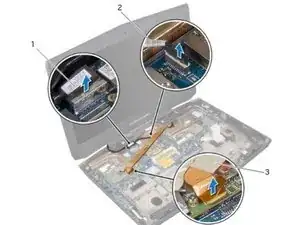

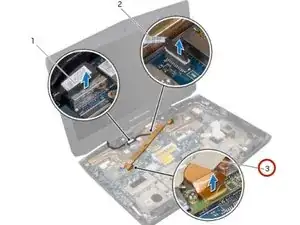

  4. JrcEXyHpjYPwaSZo

    • Disconnect the video-card connector cable from its connector on the system board.

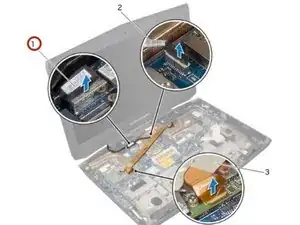

  5. eFqPq3TPir6ZDUSS

    • Pull the pull-tab to disconnect the display cable from its connector on the system board.

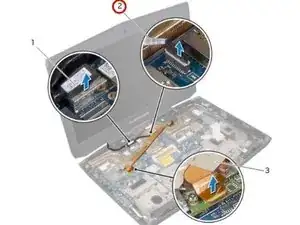

  6. SpHWpeAab3piJEVQ

    • Disconnect the LED-logo board cable from its connector on the system board.

  7. p1IcEjB11wDV1ymr

  8. VRPtJAU2FQVFVEry

    • Note the routing of the antenna cables, and then remove the cables from the routing guides on the computer base.

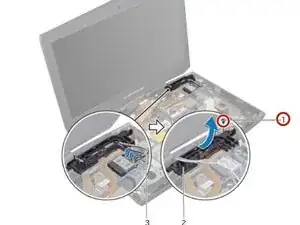

  9. yZnJgcyrFfeCvJDC

    • Remove the screw that secures the routing guides to the computer base.

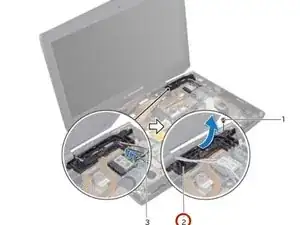

  10. rqCwSZChZs6Vrivq

    • Slide and lift the routing guides off the computer base.

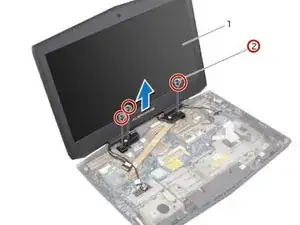

  11. r6EZ2oemMHmXIGDT

    • Remove the screws, on the display hinges, that secure the display assembly to the computer base.

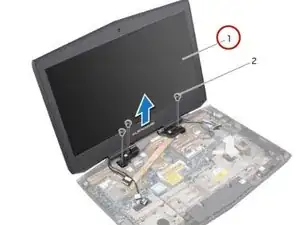

  12. x2buBgpeuDQDslLX

    • Move the display to a perpendicular position to the computer base, and then lift the display assembly off the computer.

  13. pVLTi2MuRl2ZnXZe

    • Place the NEW display assembly in position and replace the screws, on the display hinges, that secure the display assembly to the computer base.

  14. CptJCRCfqOFA5Pup

    • Place the routing guides on the computer base and replace the screw that secures the routing guides to the computer base.

  15. 2NCeaot3VaS6gojK

    • Route the Mini-Card antenna cables through the routing guides on the computer base.

  16. HWQHEM641hUcmngg

    • Connect the Mini-Card antenna cables to the Mini-Card. See"Replacing the Wireless Mini-Card" on page 107.

    • Connect the display cable, video-card connector cable, and LED-logo board cable to the respective connectors on the system board.

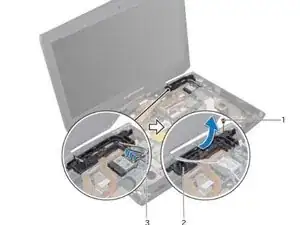

  17. CxOi51RhxNF1axnD

    • Close the display and turn the computer over.

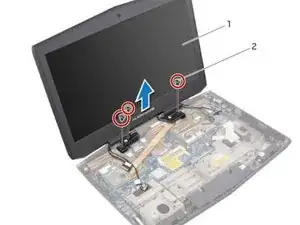

  18. I3XlWIMDrEdwXQij

    • Replace the screws that secure the display assembly to the computer base.
