DeWalt DW997 Drill Chuck Replacement

Written By: Katie Osborne
  • Comments: 18
DeWalt DW997 Drill Chuck Replacement

Difficulty

Moderate

Steps

4

Time Required

No estimate

Introduction

  1. hUdQevgG6uThvgHw
    hUdQevgG6uThvgHw
    XlTHgn3E4xVB2qaC
    nSRwdVSFgQEBoiXs

    • Open the chuck jaws to the largest diameter. Remove the interior chuck screw using the T20 Torx screwdriver.

    • The chuck screw is reverse, or left-hand, threaded, which means you will need to unscrew it clockwise.

    Although you specify "reverse threaded", you confuse the issue by saying "counterclockwise." You mean counterclockwise from the drill's perspective, but that's counter-intuitive. Many folks will assume clockwise or counter from the screwdriver's perspective. It would help to make that clear. Same applies to step 3 where the photo makes it clear you mean clockwise from the drill's perspective, but since your're unscrewing the allen screw, I would tend to interpret it from the allen wrench's perspective, which would be counterclockwise. Thanks for providing this instruction set.

    Charles Key -

    You need to Simply reverse counterclockwise and clockwise in your instructions

    Mark -

    You need to reverse counterclockwise and clockwise in your instructions

    Mark -

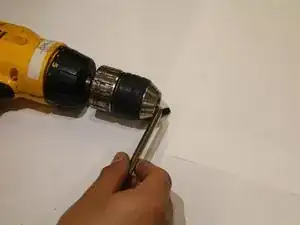

  2. kjrXS24hTAhQi23x

    • Insert the Allen wrench into the chuck jaws and tighten the jaws down on the wrench.

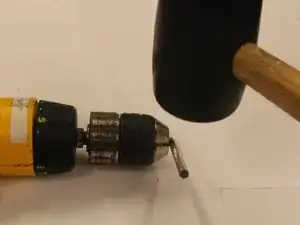

  3. 2eqh6i2bUrISCXbw

    • Hit the Allen wrench with a mallet or hammer to loosen and remove the chuck.

    • Hit the Allen wrench from above. Chuck spindle threads are conventional and loosen counter-clockwise.

    Clockwise or counter clockwise? Image shows counter clockwise but directions say clockwise…

    Tyr -

    Counter clockwise per youtube videos: https://www.youtube.com/watch?time_conti...

    Scott -

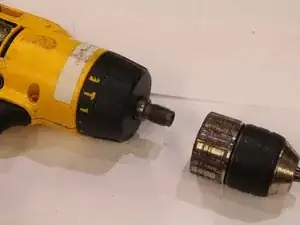

  4. EX5tGueucHqT3pgV

    • Remove the chuck from the drill.

    • Check chuck and chuck mount for damages or debris.

    • If replacing chuck, attach new chuck and check functionality.

    • If clearing debris from a jam, make sure chuck mount is clear before reaataching the chuck and checking functionality.

    Thankx for the Easy to understand& follow instructions-perfect! But I can't get the stupid chuck to release the friggin bit so I can start on the first step!! Grrrrr…very very frustrated!

    Angel Williams -

    Inside Moving parts one of them is moving the same way than the other two

    javier castillo -

    J’ai eu du mal car il était bien bloqué mais les photos et le texte m’ont bien aidé

    cdelgrange -

    Your picture shows hitting the internal allen wrench counter clockwise but you say to turn it clockwise, which is it???

    Ed Edmondson -

    Counter clockwise per youtube videos: https://www.youtube.com/watch?time_conti...

    Scott -

Conclusion

To reassemble your device, follow these instructions in reverse order.

Author

Katie Osborne

Member since: 12/09/16

385 Reputation

8 comments

If Allen wrench loosens the truck clockwise as written wouldn’t you be hitting it the other way ? Not sure if I’m not understanding correctly or reading something wrong. Thank you

Jan M -

I agree with Jan. This does not make sense to me and i have been twisting this stupid thing for 3 days.

Bridgette Elliott -

Your comment ‘The chuck screw is reverse threaded, which means you will need to unscrew it counterclockwise. ‘ is nonsense.

A normal screw is counterclockwise to unscrew.

What you meant to say was

‘The chuck screw is reverse threaded, which means you will need to unscrew it clockwise. ‘

You might also like to add the the screw is often coated with loctite and very difficult to remove. A high quality tool and plenty of force may be required to remove this screw.

dasdasdas -

I think the clockwise thing wasn’t that hard to understand, but personally, my chuck screw was actually quite easy to remove so it wasn’t a problem for me

J .Healy -

https://studio.youtube.com/video/Vx37F9q...

Here’s a short video on how to fix a chuck on drill. The screw that holds the chuck to the drill broke and needed to be extracted, and replaced.

alejandropenagarcia -

I think my problem is exactly what your video shows - screw holding the chuck broke - but the link does not work. Can you give a good link or better description of the video? (There are many on removal of the chuck, and I can't find this one). Many thanks!

David

David G. Butterworth -

To commenters, it’s 2 separate procedures.

First your removing the SET SCREW (step 1 & be sure to look at all 3 pictures). The internal set screw is reverse threaded & removes by turning CLOCKWISE.

Then, your removing the CHUCK (steps 2-4). The chuck removes in a COUNTER CLOCKWISE direction. Also, when removing the chuck you are supposed to slide the gearbox into the lowest torque position (#1, not #2 or #3).

A video is at: youtube.com/watch?v=bp_mXt3Zo5w

K M -

How would I remove the chuck if there is a drill bit stuck and it is seized?

Karissa Kyle -
