D-Link DCS-2630L Wi-Fi Camera Microphone Replacement

Written By: Stanley DeLuna-Dabrowski
  • Comments: 0
D-Link DCS-2630L Wi-Fi Camera Microphone Replacement

Difficulty

Moderate

Steps

9

Time Required

15 minutes

Introduction

  1. hLwYGfObSXddJLo6

    • Remove the two 9.65 mm screws on the back cover using the Philips head PH00 screw driver.

  2. syVABDNMBxmuJD1n

    • Remove the back casing to expose the circuit board.

  3. sW5fNqyQUiZkstyj

    • Detach the gray antenna wires by gently pulling on the side closest to the circuit board.

  4. E3Yp12gHBI3Or6uo

    • Detach the speaker wire by gently pulling on the side closest to the body of the camera.

  5. 6woMI4umQLYxsaA2

    • Remove the two 4.35 mm screws on the circuit board using the Philips head PH00 screw driver.

  6. GKINsiHEkUWcfiDH
    GKINsiHEkUWcfiDH
    4Hy2xtTitSwWojOF

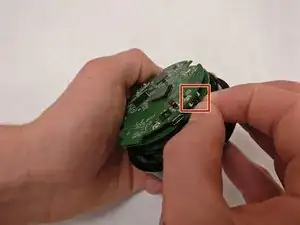

    • Detach the white plug by gently pulling on the black wires.

  7. 2jFhIFYyPOmKaXBY
    2jFhIFYyPOmKaXBY
    TgrW3i56HK2TYYDx

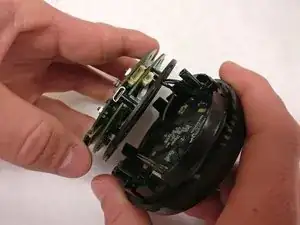

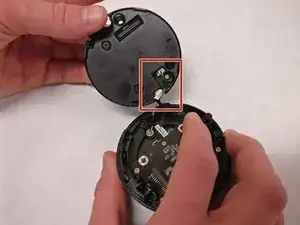

    • Remove the circuit board to expose the camera body.

    • At the same time, you will need to feed the wires through the circuit board and out the slot in the black plate under the circuit board.

  8. lLPqHKLbkAmoNLlB
    lLPqHKLbkAmoNLlB
    VZqWhJ5AmcueAtNp

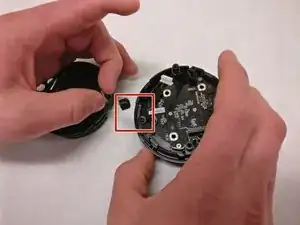

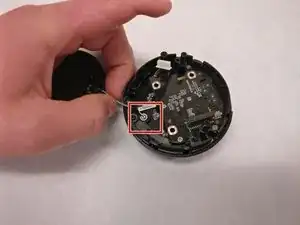

    • Gently pull on the grey wire to detach the microphone from the camera body.

  9. 4FrZBiFCSxGsXDSN
    4FrZBiFCSxGsXDSN
    iOIjxZc3vVCFAjj5
    DxZbAShMRMlaMRSB

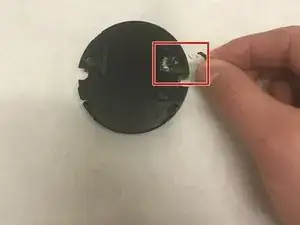

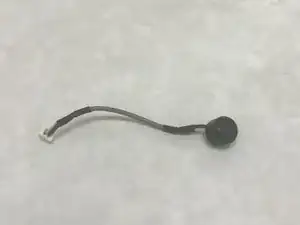

    • Detach the microphone from the circuit board by gently pulling on the grey wire.

Conclusion

To reassemble your device, follow these instructions in reverse order.
